B57861E0103A010
NTC THERMISTOR SENSOR FOR INDUSTManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

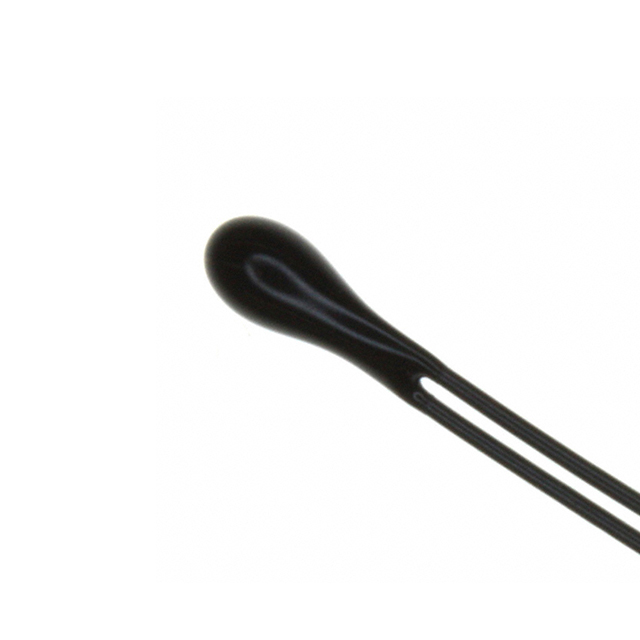

EPCOS - TDK Electronics B57861E0103A010 is an NTC thermistor with a 10k Ohm resistance at 25°C. This bead-style thermistor, encapsulated in epoxy and supplied on tape and reel, features a B25/100 value of 3988K. It offers a resistance tolerance of ±2% and a B value tolerance of ±1%. The component has a maximum power rating of 60 mW and an operating temperature range of -40°C to 155°C. The lead wires measure 7.87 inches (200.00mm), and the mounting type is free hanging. This NTC thermistor sensor is designed for industrial applications, including temperature measurement and control in various equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Bead, Epoxy |
| Mounting Type | Free Hanging |
| Operating Temperature | -40°C ~ 155°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | - |
| B25/100 | 3988K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±2% |
| B25/75 | - |
| Length - Lead Wire | 7.87"" (200.00mm) |
| Power - Max | 60 mW |
