B57620C5103H062
THERMISTOR NTC 10KOHM 3660K 0805Manufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

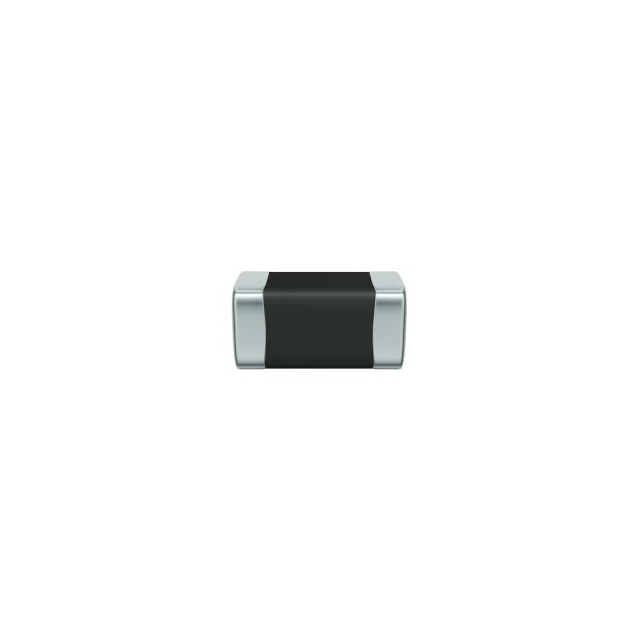

The EPCOS - TDK Electronics B57620C5103H062 is an NTC thermistor with a nominal resistance of 10 kOhms at 25°C and a B25/50 value of 3660K. This component features a ±3% resistance tolerance and a ±3% B value tolerance. Designed for surface mounting, it is housed in an 0805 (2012 Metric) package. The operating temperature range is from -55°C to 125°C, with a maximum power dissipation of 210 mW. This NTC thermistor is suitable for applications in industrial and consumer electronics, including temperature sensing and compensation circuits. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| B0/50 | - |
| B25/50 | 3660K |
| B25/85 | 3720K |
| B25/100 | 3730K |
| B Value Tolerance | ±3% |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±3% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 210 mW |
