B57560G0503F000
THERMISTOR NTC 50KOHM 3992K BEADManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

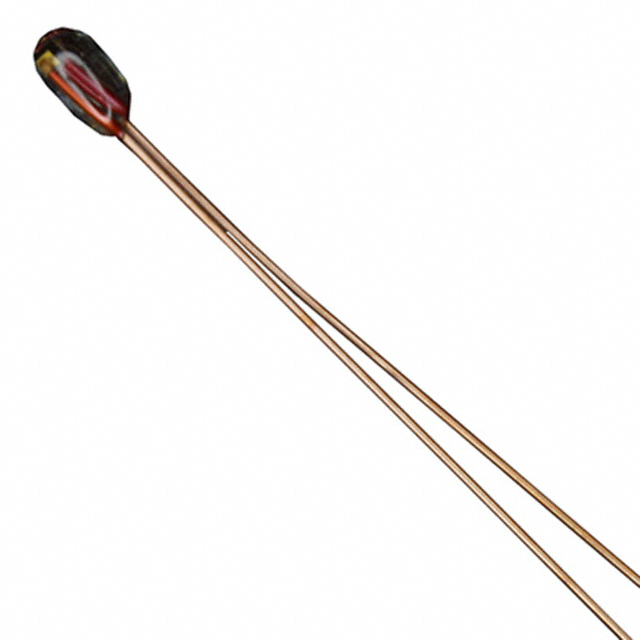

EPCOS - TDK Electronics B57560G0503F000 is an NTC Thermistor with a nominal resistance of 50k Ohms at 25°C and a resistance tolerance of ±1%. This bead-in-glass component features a B25/85 value of 3992K and a B25/100 value of 4006K, with a B value tolerance of ±1%. Designed for through-hole mounting, it has a lead wire length of 2.64 inches (67.00mm) and an operating temperature range of -55°C to 200°C. The maximum power dissipation is 50 mW. This component is qualified to AEC-Q200 and is suitable for automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3992K |
| B25/100 | 4006K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 50k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 2.64"" (67.00mm) |
| Grade | Automotive |
| Power - Max | 50 mW |
| Qualification | AEC-Q200 |
