B57560G0104F000
THERM NTC 100KOHM 4066K BEADManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

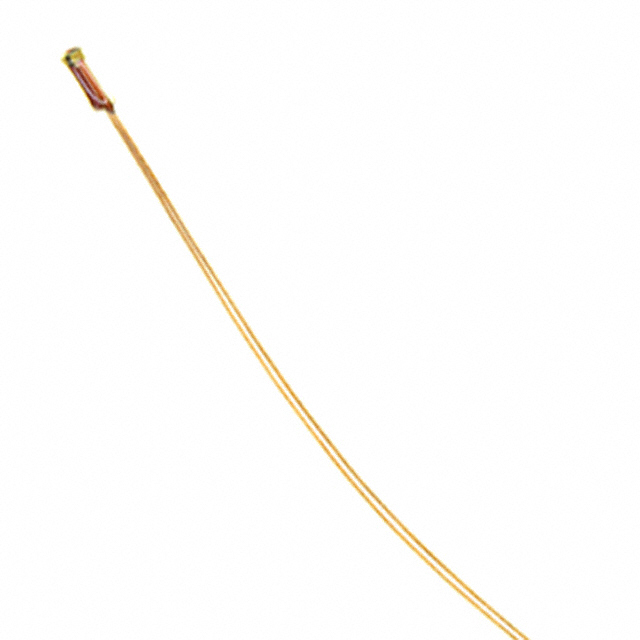

The EPCOS - TDK Electronics B57560G0104F000 is a glass bead NTC thermistor with a nominal resistance of 100 kOhms at 25°C. This component features a B25/85 value of 4066K and a tight ±1% resistance tolerance. Designed for through-hole mounting, it offers a broad operating temperature range from -55°C to 200°C. The B57560G0104F000 is suitable for applications requiring precise temperature sensing, including industrial automation, automotive systems, and medical equipment. It is supplied in bulk packaging. The lead wire length is 2.64 inches (67.00mm), and the maximum power dissipation is 50 mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4066K |
| B25/100 | 4085K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 100k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 2.64"" (67.00mm) |
| Power - Max | 50 mW |
Request a Quote
