B57560G0103F000
THERMISTOR NTC 10KOHM 3480K BEADManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

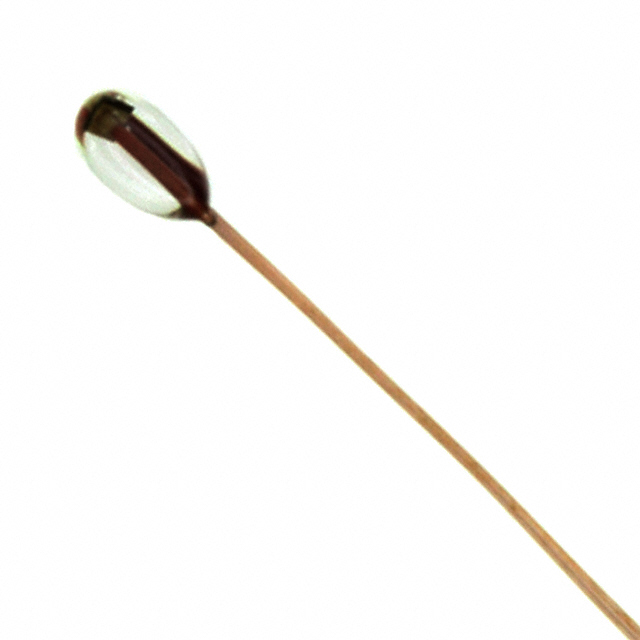

The EPCOS - TDK Electronics B57560G0103F000 is a 10k Ohm NTC thermistor with a ±1% resistance tolerance at 25°C. It features a B25/85 value of 3480K, ensuring precise temperature sensing. This bead-style thermistor, encased in glass, operates across a wide temperature range of -55°C to 300°C and is rated for a maximum power dissipation of 50 mW. The component includes lead wires with a length of 2.64 inches (67.00mm) and is designed for through-hole mounting. Qualified to AEC-Q200 standards and carrying an automotive grade, this thermistor is suitable for demanding applications in the automotive industry, as well as industrial control and consumer electronics where accurate temperature measurement is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 300°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3480K |
| B25/100 | 3497K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 2.64"" (67.00mm) |
| Grade | Automotive |
| Power - Max | 50 mW |
| Qualification | AEC-Q200 |
Request a Quote
