B57551G0502F000
THERMISTOR NTC 5KOHM 3480K BEADManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

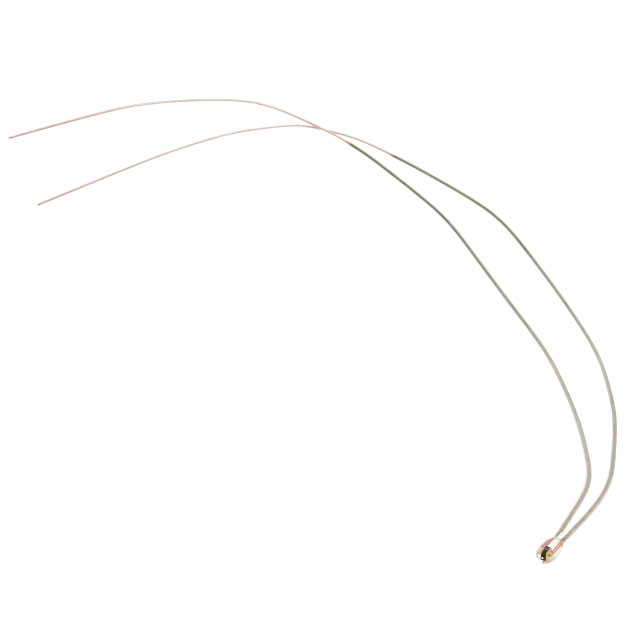

EPCOS - TDK Electronics B57551G0502F000 is an NTC thermistor with a resistance of 5 kOhms at 25°C and a B value of 3480K (B25/85). This bead-style thermistor is encapsulated in glass and features a ±1% resistance tolerance. It is qualified to AEC-Q200 standards, indicating suitability for automotive applications. The component offers a wide operating temperature range from -55°C to 260°C and a maximum power dissipation of 32 mW. It is designed for through-hole mounting and comes with lead wires approximately 67.30mm in length. This component is commonly utilized in automotive, industrial, and consumer electronics for temperature sensing and compensation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 260°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3480K |
| B25/100 | 3497K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 5K |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 2.65"" (67.30mm) |
| Grade | Automotive |
| Power - Max | 32 mW |
| Qualification | AEC-Q200 |
