B57550G0104F000
THERM NTC 100KOHM 4066K BEADManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

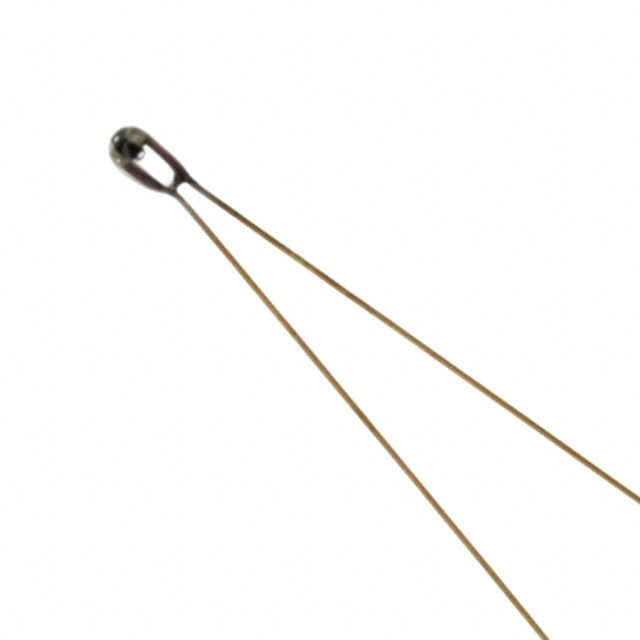

The EPCOS - TDK Electronics B57550G0104F000 is a glass bead NTC thermistor with a nominal resistance of 100 kOhms at 25°C. This component features a B25/85 value of 4066K, with a tight B value tolerance of ±1%. Designed for precision temperature sensing, it operates across a wide temperature range from -55°C to 200°C. The thermistor has a maximum power dissipation of 32 mW and is supplied in bulk packaging with lead wires measuring 2.80 inches (71.00mm). Its through-hole mounting type and glass bead construction make it suitable for applications in automotive, industrial control, and consumer electronics where accurate temperature monitoring is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 4066K |
| B25/100 | 4085K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 100k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 2.80"" (71.00mm) |
| Power - Max | 32 mW |
