B57540G0103F000
THERMISTOR NTC 10KOHM 3480K BEADManufacturer: EPCOS - TDK Electronics
Categories: NTC Thermistors
Quality Control: Learn More

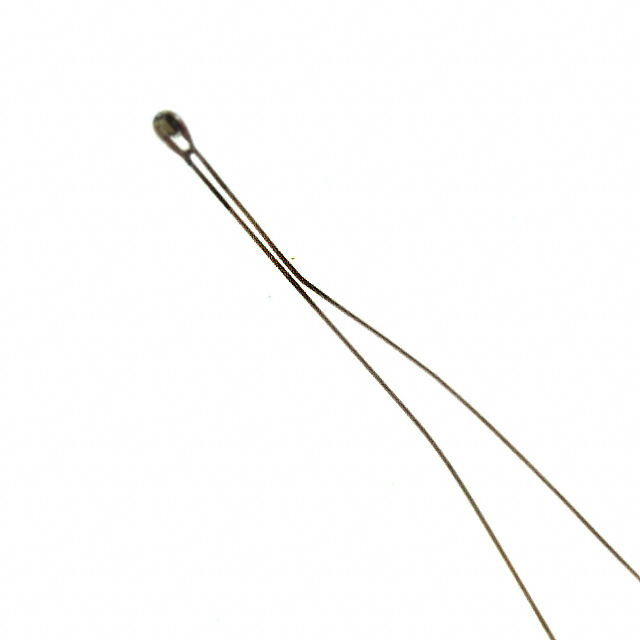

EPCOS - TDK Electronics B57540G0103F000 is an NTC thermistor from the B57540 series. This component features a 10k Ohm resistance at 25°C with a ±1% tolerance. The B25/85 value is specified at 3480K, and the B25/100 value is 3497K, indicating its temperature sensing characteristics. Encased in a glass bead package, the thermistor has lead wires with a length of 2.56 inches (65.00mm) and is designed for through-hole mounting. It operates within a temperature range of -55°C to 200°C and has a maximum power dissipation of 18 mW. This component is commonly utilized in temperature sensing and compensation applications across various industries, including automotive, industrial control, and consumer electronics.
Additional Information
Series: B57540RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Bead, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 200°C |
| B0/50 | - |
| B25/50 | - |
| B25/85 | 3480K |
| B25/100 | 3497K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | 2.56"" (65.00mm) |
| Power - Max | 18 mW |
