B82477G2473M000
FIXED IND 47UH 1.8A 75 MOHM SMDManufacturer: EPCOS - TDK Electronics
Categories: Fixed Inductors
Quality Control: Learn More

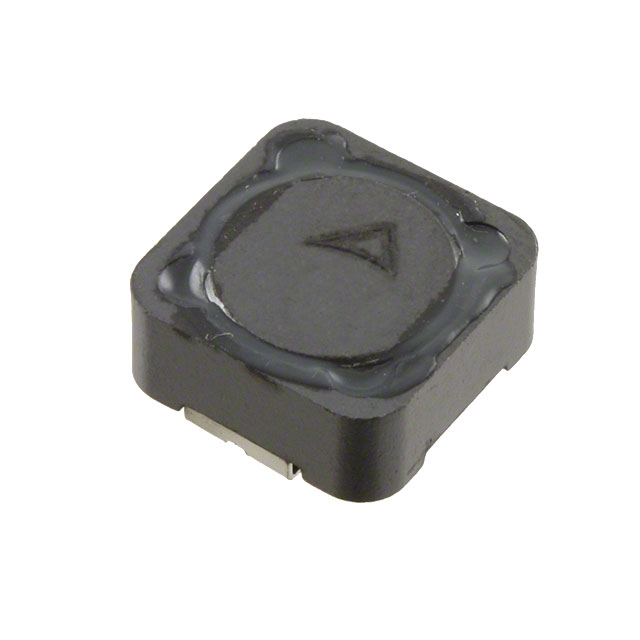

47 µH Shielded Drum Core, Wirewound Inductor 1.8 A 75mOhm Max Nonstandard
Additional Information
Series: B82477G2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.484"" L x 0.484"" W (12.30mm x 12.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 75mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.236"" (6.00mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 1.8 A |
Request a Quote
