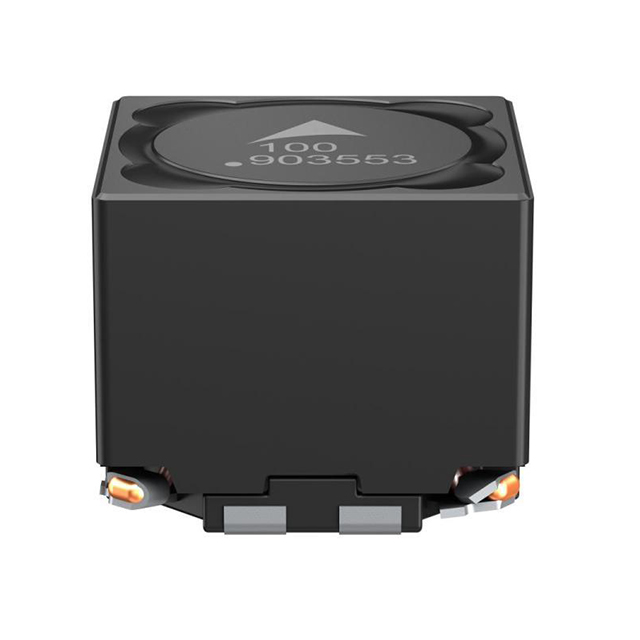

B82477D6223M603
FIXED IND 22UH 3.85A 53MOHM SMDManufacturer: EPCOS - TDK Electronics
Categories: Arrays, Signal Transformers
Quality Control: Learn More
Shielded 2 Coil Inductor Array 88 µH Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 26.5mOhm Max DC Resistance (DCR) - Parallel Nonstandard
Additional Information
Series: B82477D6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492"" L x 0.492"" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 150°C |
| Height | 0.413"" (10.50mm) |
| Ratings | AEC-Q200 |
| Number of Coils | 2 |
| Inductance - Connected In Series | 88 µH |
| Inductance - Connected In Parallel | 22 µH |
| Current Rating - Series | 3.85 A |
| Current Saturation - Parallel | 7.2 A |
| Current Saturation - Series | 3.6 A |
| DC Resistance (DCR) - Parallel | 26.5mOhm Max |
| DC Resistance (DCR) - Series | 106mOhm Max |
Request a Quote
