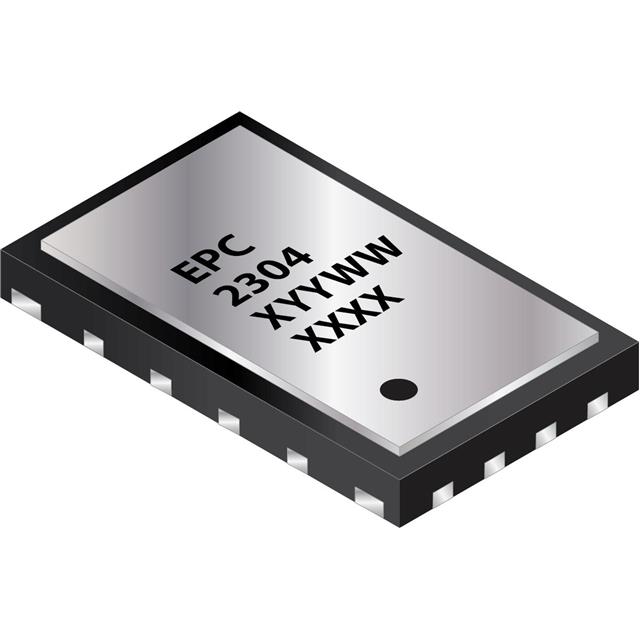

EPC2304ENGRT
TRANS GAN 200V .005OHM 3X5PQFNManufacturer: EPC
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 200 V 102A (Ta) Surface Mount 7-QFN (3x5)
Additional Information
Series: eGaN®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 7-PowerWQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 102A (Ta) |
| Rds On (Max) @ Id, Vgs | 3.1mOhm @ 32A, 5V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 2.5V @ 8mA |
| Supplier Device Package | 7-QFN (3x5) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Vgs (Max) | +6V, -4V |
| Drain to Source Voltage (Vdss) | 200 V |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3195 pF @ 100 V |
Request a Quote
