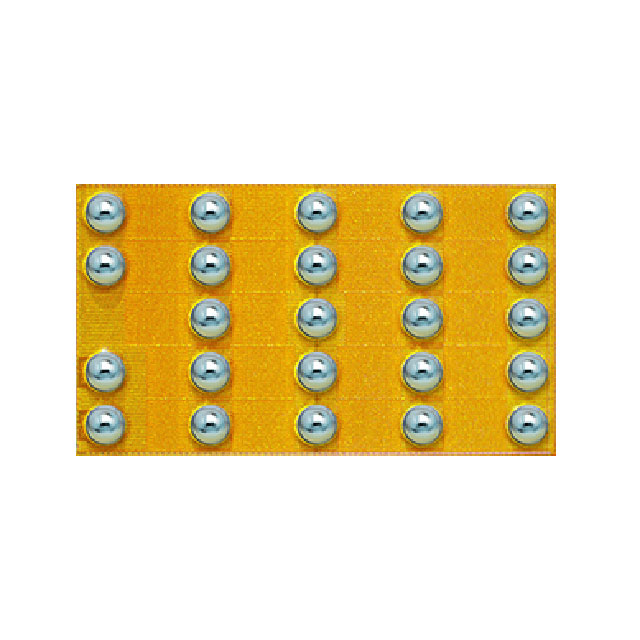

EPC2234
TRANS GAN AEC 170V .008OHM 24BGAManufacturer: EPC
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 160 V 48A (Ta) Surface Mount 24-BGA (4.6x2.6)
Additional Information
Series: eGaN®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 24-VFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 48A (Ta) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 20A, 5V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 2.5V @ 7mA |
| Supplier Device Package | 24-BGA (4.6x2.6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Vgs (Max) | +5.5V, -4V |
| Drain to Source Voltage (Vdss) | 160 V |
| Gate Charge (Qg) (Max) @ Vgs | 13.8 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1386 pF @ 100 V |
| Qualification | AEC-Q101 |
Request a Quote
