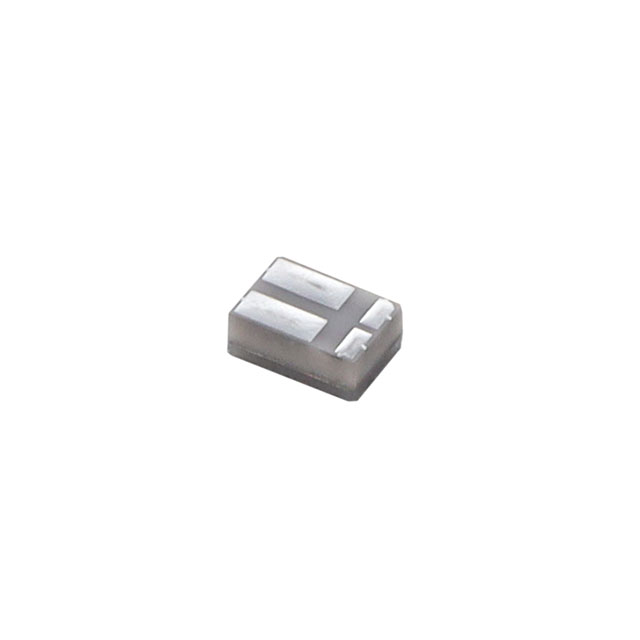

FBG04N30BSH
GAN FET HEMT 40V 30A 4FSMD-BManufacturer: EPC Space, LLC
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 30A (Tc) Surface Mount 4-SMD
Additional Information
Series: e-GaN®RoHS Status: unknownManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, No Lead |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 30A, 5V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 2.5V @ 9mA |
| Supplier Device Package | 4-SMD |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Vgs (Max) | +6V, -4V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 11.4 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 20 V |
Request a Quote
Clients Also Buy

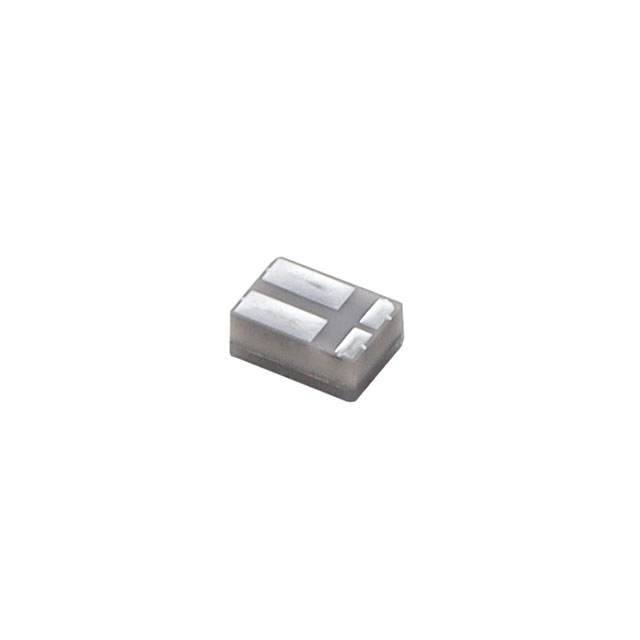

FBG20N18BSH
