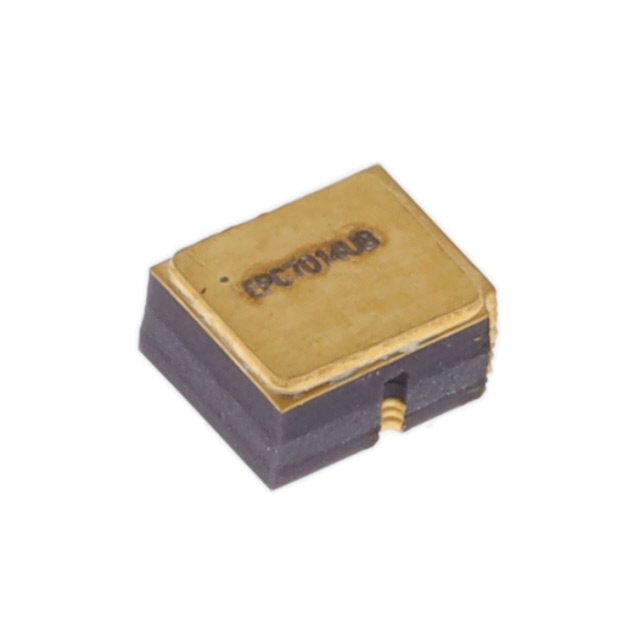

EPC7014UBC
GAN FET HEMT 60V 1A COTS 4UBManufacturer: EPC Space, LLC
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 1A (Tc) Surface Mount 4-SMD
Additional Information
Series: e-GaN®RoHS Status: unknownManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, No Lead |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1A (Tc) |
| Rds On (Max) @ Id, Vgs | 580mOhm @ 1A, 5V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 2.5V @ 140µA |
| Supplier Device Package | 4-SMD |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Vgs (Max) | +7V, -4V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 22 pF @ 30 V |
