ME-XU7-15EG-2I-D12E-R3
IC MOD ARM 533MHZ/1.333GHZ 2GBManufacturer: Enclustra FPGA Solutions
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

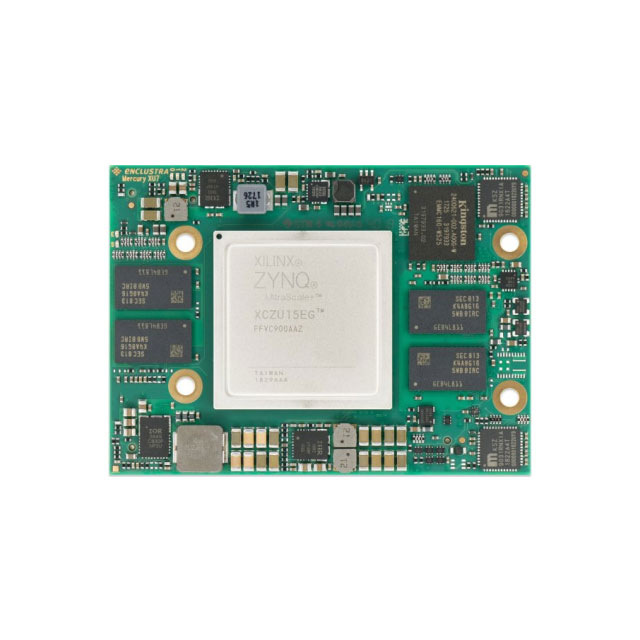

Enclustra FPGA Solutions ME-XU7-15EG-2I-D12E-R3 is an embedded module featuring a quad-core ARM Cortex-A53 processor and a dual-core ARM Cortex-R5 processor, complemented by a Mali-400MP2 GPU. This module operates at clock speeds of 533MHz and 1.333GHz, equipped with 2GB of RAM and an option for 4GB, along with 16GB of flash storage. Its robust design and processing capabilities make it suitable for applications in industrial automation, medical devices, and advanced telecommunications. The module is housed in a 168-pin connector and measures 74.00mm x 54.00mm, designed for operation within an industrial temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | 168 Pin |
| Size / Dimension | 2.910"" L x 2.130"" W (74.00mm x 54.00mm) |
| Speed | 533MHz, 1.333GHz |
| RAM Size | 2GB, 4GB |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MPU, FPGA Core |
| Core Processor | ARM® Quad-Core Cortex-A53, ARM® Dual-Core Cortex-R5, Mali-400MP2 GPU |
| Co-Processor | - |
| Flash Size | 16GB |
Request a Quote
