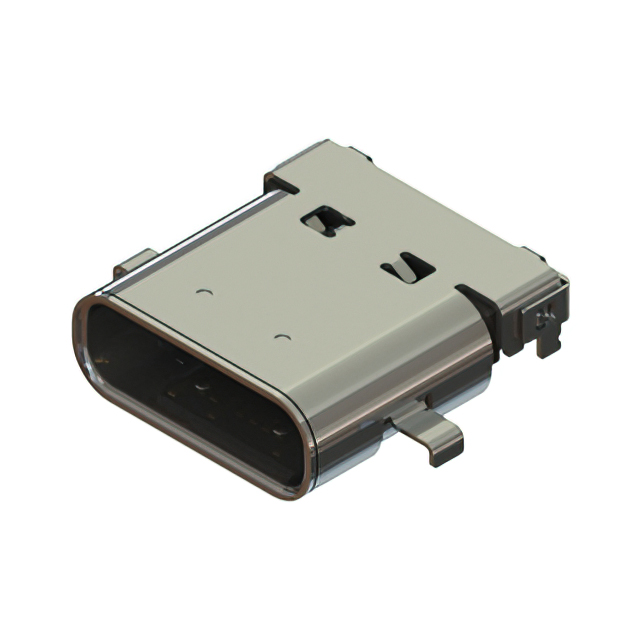

698C124-215-211
690 SERIES 24 PIN USB TYPE-C CONManufacturer: EDAC Inc.
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Additional Information
Series: 698CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Bulk |
| Voltage - Rated | - |
| Number of Contacts | 24 |
| Connector Type | USB-C (USB TYPE-C) |
| Gender | Receptacle |
| Current Rating (Amps) | 5A |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 80°C |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal, Mid Mount |
| Number of Ports | 1 |
