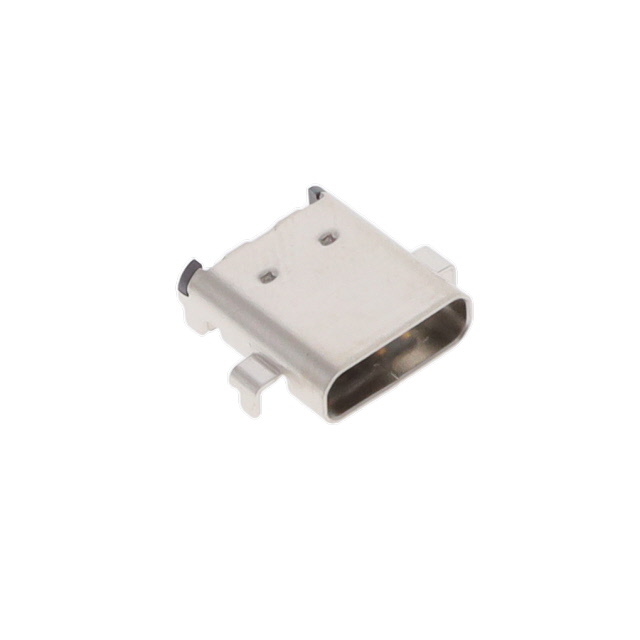

690-024-633-031
CONN RCPT USB3.1 TYPEC 24POS SMDManufacturer: EDAC Inc.
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
EDAC Inc. 690 Series USB-C receptacle connector, part number 690-024-633-031, offers robust connectivity for high-speed data transfer. This 24-position connector supports USB 3.2 Gen 2 (also known as USB 3.1 Gen 2 or SuperSpeed+) specifications, enabling data rates up to 10 Gbps. Designed for board edge mounting with cutout, it features both surface mount and through-hole, right-angle termination for versatile PCB integration. With a mating cycle rating of 10,000, it ensures durability in demanding applications. This component is commonly utilized in consumer electronics, computing, and automotive systems where reliable, high-bandwidth data interfaces are critical. Supplied in Tape & Reel packaging for automated assembly.
Additional Information
Series: 690RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 100VAC |
| Number of Contacts | 24 |
| Connector Type | USB-C (USB TYPE-C) |
| Gender | Receptacle |
| Current Rating (Amps) | - |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Shielding | - |
| Operating Temperature | - |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal, Mid Mount |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
