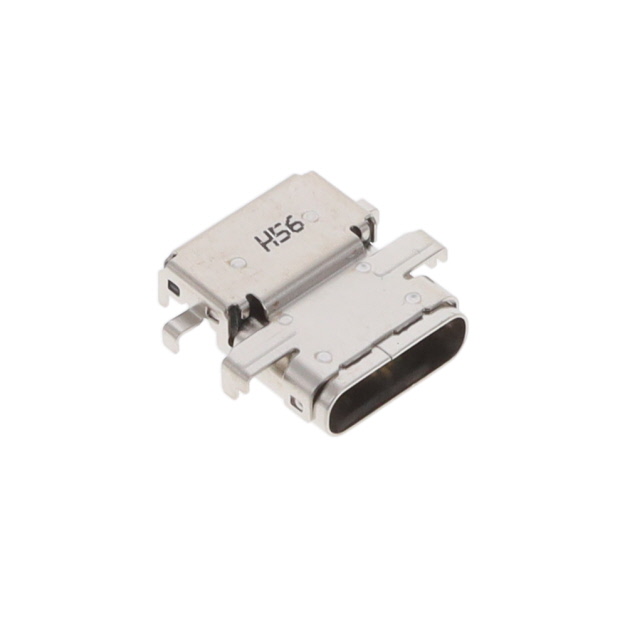

690-024-632-031
CONN RCPT USB3.1 TYPEC 24POS SMDManufacturer: EDAC Inc.
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
EDAC Inc. 690 Series USB-C receptacle connector, part number 690-024-632-031. This 24-position, single-port connector supports USB 3.2 Gen 2 (SuperSpeed+). It features a board edge, cutout mounting style with both surface mount and through-hole, right-angle termination. Designed for 10,000 mating cycles, this receptacle operates within a temperature range of -40°C to 85°C and has a current rating of 1A. Commonly utilized in consumer electronics, automotive, and industrial applications requiring high-speed data transfer and versatile connectivity. Supplied in Tape & Reel packaging.
Additional Information
Series: 690RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | - |
| Number of Contacts | 24 |
| Connector Type | USB-C (USB TYPE-C) |
| Gender | Receptacle |
| Current Rating (Amps) | 1A |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Shielding | - |
| Operating Temperature | -40°C ~ 85°C |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
