516-056-501-402
516 SERIES RACK & PANEL CONNECTOManufacturer: EDAC Inc.
Categories: Specialized
Quality Control: Learn More

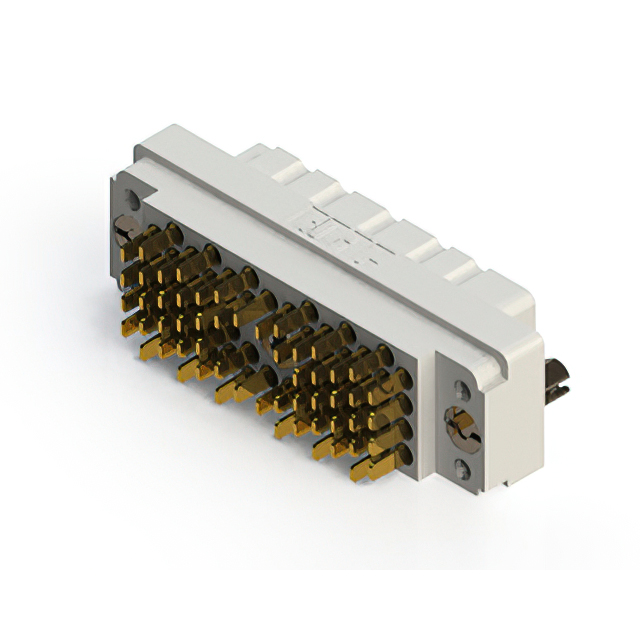

56 Connector Receptacle, Hermaphroditic Contacts Panel Mount Gray Rack and Panel
Additional Information
Series: 516RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Jackscrew, Guide Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Hermaphroditic Contacts |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Panel Mount |
| Number of Positions | 56 |
| Pitch | 0.150"" (3.81mm) |
| Number of Rows | 9 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | Backplane |
| Connector Style | Rack and Panel |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Layout, Typical | - |
| Number of Columns | 14 |
