802-010-299-205
302 SERIES (.05"" (1.27MM) CONTACManufacturer: EDAC Inc.
Categories: Edgeboard Connectors
Quality Control: Learn More

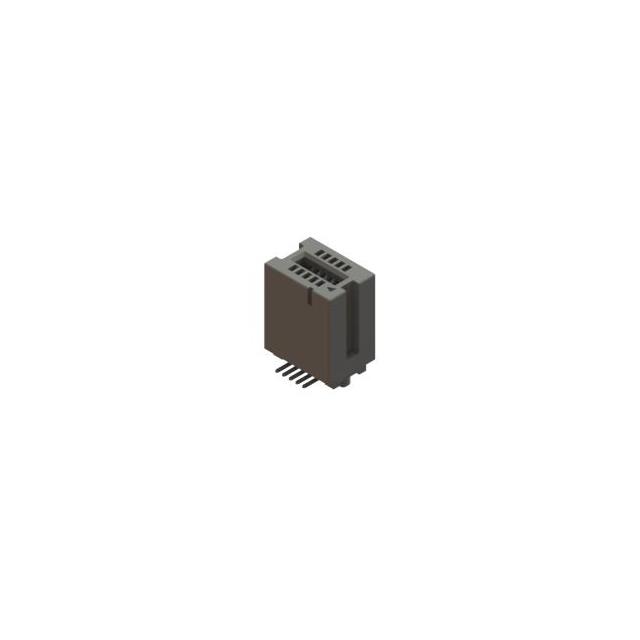

10 Position Female Connector Non Specified - Dual Edge Gold 0.050"" (1.27mm) Black
Additional Information
Series: 302RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tube |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Pitch | 0.050"" (1.27mm) |
| Operating Temperature | -55°C ~ 85°C |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.051"" ~ 0.071"" (1.30mm ~ 1.80mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | FLASH |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 5 |
| Number of Rows | 2 |
