637-W15-221-012
CONN D-SUB HD PLUG 15POS PNL MNTManufacturer: EDAC Inc.
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

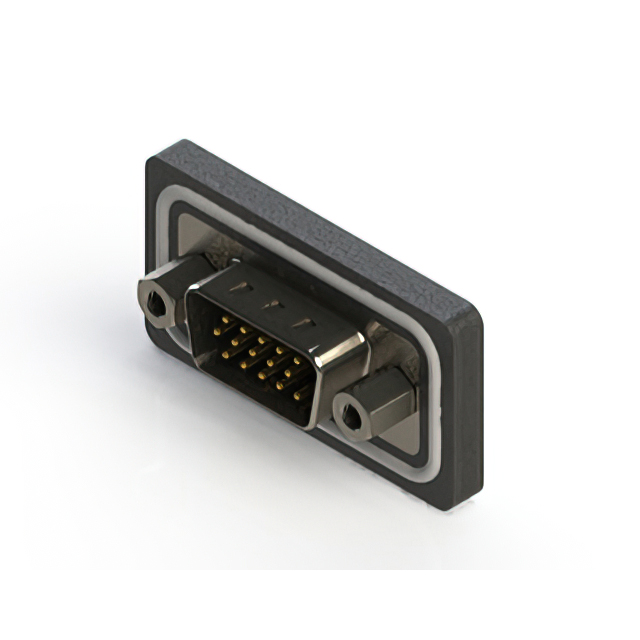

15 Position D-Sub, High Density Plug, Male Pins Connector
Additional Information
Series: 637-WRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Connector Style | D-Sub, High Density |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Backset Spacing | - |
