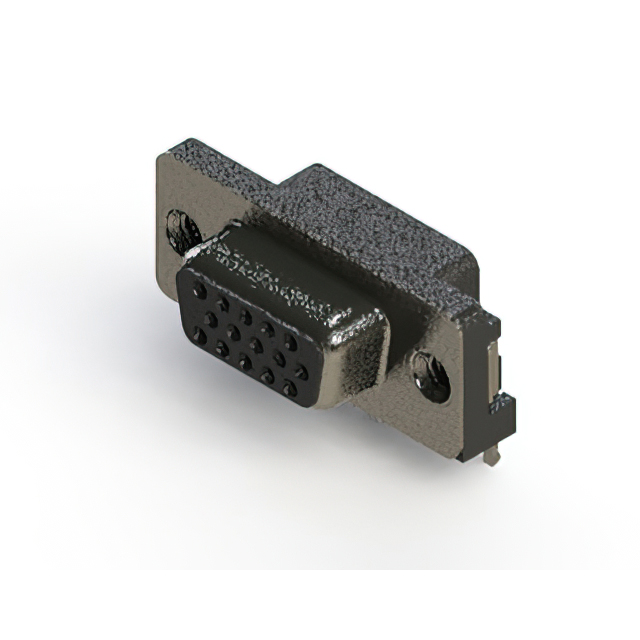

632-015-266-032
CONN D SUB RCPT 15POS R/A .125Manufacturer: EDAC Inc.
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Additional Information
Series: 632RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Shielded |
| Packaging | - |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub, High Density |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Backset Spacing | 0.121"" (3.08mm) |
