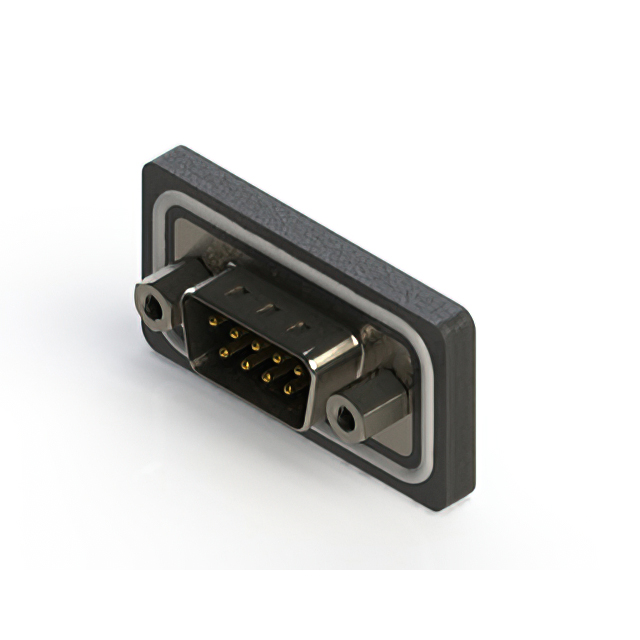

629-W09-240-012
CONN D-SUB PLUG 9POS R/A SLDRManufacturer: EDAC Inc.
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
9 Position D-Sub, Combo Plug, Male Pins Connector
Additional Information
Series: 629-WRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Grounding Indents |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A per Contact |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Connector Style | D-Sub, Combo |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | 0.406"" (10.30mm) |
Request a Quote
Clients Also Buy

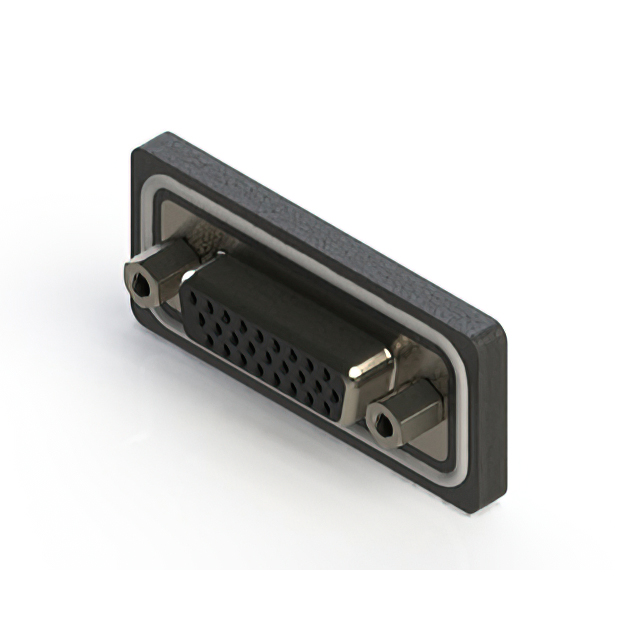

638-W26-222-012
638W (WATERPROOF) SERIES VERTICA

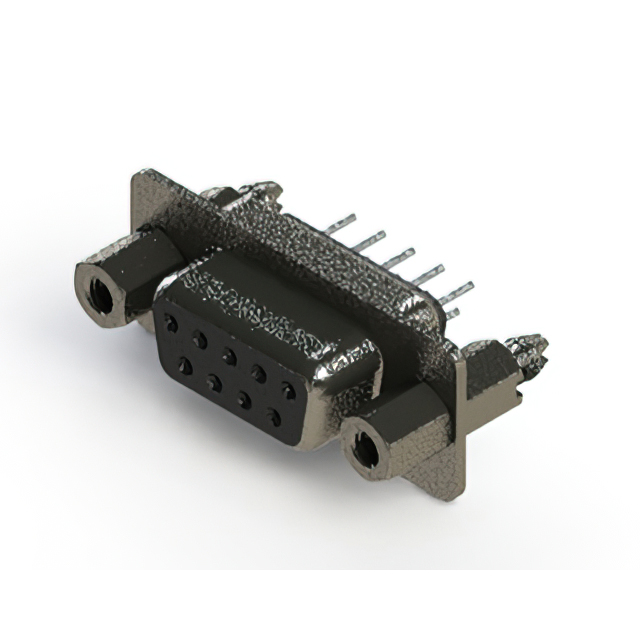

628-009-220-047
