628-M09-621-BN1
628M SERIES VERTICAL D-SUB RECEPManufacturer: EDAC Inc.
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

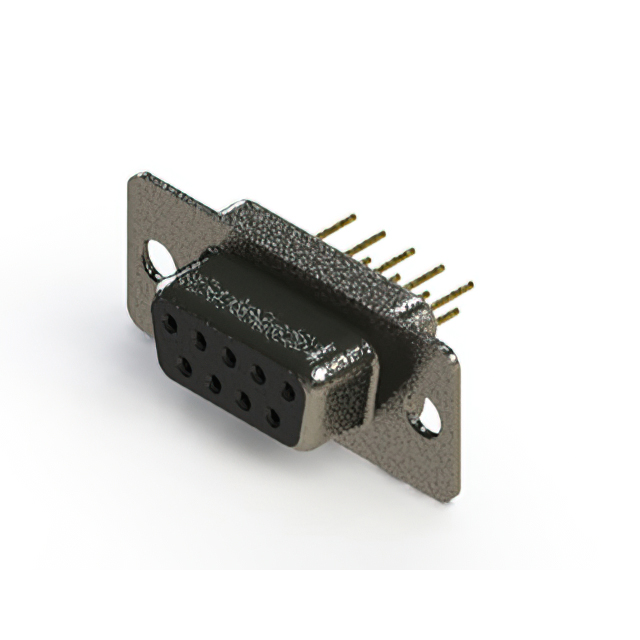

9 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: 628-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A per Contact |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | - |
Request a Quote
