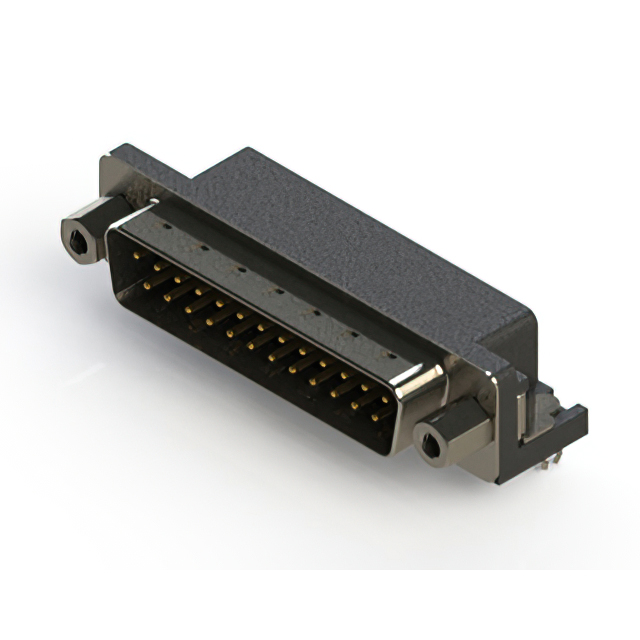

621-025-260-043
CONN D-SUB PLUG 25POS R/A SLDRManufacturer: EDAC Inc.
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
25 Position D-Sub Plug, Male Pins Connector
Additional Information
Series: 621RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Grounding Indents, Mounting Brackets, Shielded |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A per Contact |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 3 (DB, B) |
| Backset Spacing | 0.318"" (8.08mm) |
Request a Quote
Clients Also Buy
621-009-260-042
CONN D-SUB PLUG 9POS R/A SLDR
6211121304F
22MM FLTPMI RGB 3VDC W/TERM

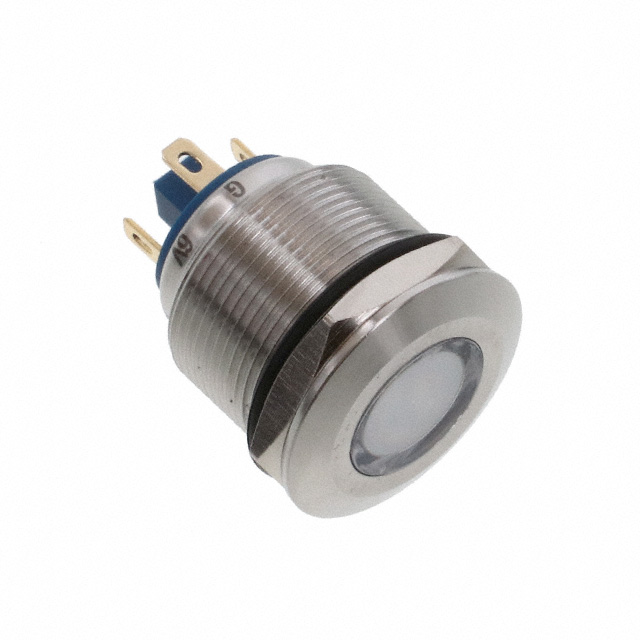

6211122304F
