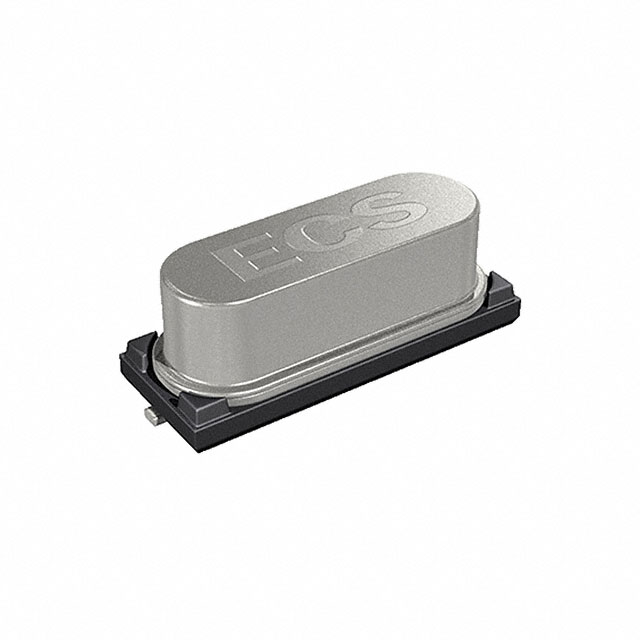

ECS-80-16-7S-TR
CRYSTAL 8.0000MHZ 16PF SMDManufacturer: ECS Inc.
Categories: Crystals
Quality Control: Learn More
8 MHz ±30ppm Crystal 16pF 80 Ohms 4-SOJ, 9.40mm pitch
Additional Information
Series: ECX-3SRoHS Status: RoHS non-compliantManufacturer Lead Time: 61 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOJ, 9.40mm pitch |
| Load Capacitance | 16pF |
| Size / Dimension | 0.492"" L x 0.181"" W (12.50mm x 4.60mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -10°C ~ 70°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.146"" (3.70mm) |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Frequency | 8 MHz |
