ECS-40-18-10X
CRYSTAL 4.0000MHZ 18PF THManufacturer: ECS Inc.
Categories: Crystals
Quality Control: Learn More

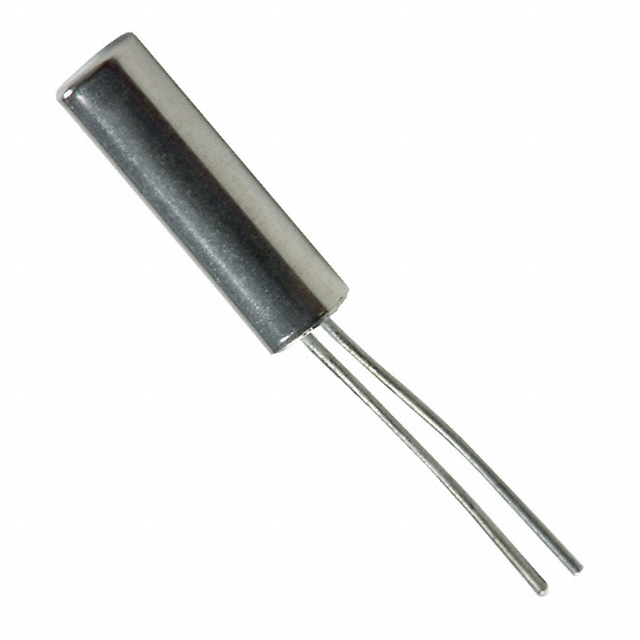

4 MHz ±50ppm Crystal 18pF 150 Ohms Cylindrical Can, Radial
Additional Information
Series: ECS-3X10XRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cylindrical Can, Radial |
| Load Capacitance | 18pF |
| Size / Dimension | 0.126"" Dia x 0.413"" L (3.20mm x 10.50mm) |
| Mounting Type | Through Hole |
| Type | MHz Crystal |
| Operating Temperature | -10°C ~ 60°C |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±50ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.413"" (10.50mm) |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 4 MHz |
Request a Quote
