9906
FAN AXIAL 119X25MM 115VAC TERMManufacturer: ebm-papst Inc.
Categories: AC Fans
Quality Control: Learn More
Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 79.5 CFM (2.23m³/min) 2 Terminals
Additional Information
Series: 9900RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 12.00W |
| Features | - |
| Packaging | Bulk |
| Voltage - Rated | 115VAC |
| Size / Dimension | Square - 119mm L x 119mm H |
| Bearing Type | Ball |
| RPM | 2850 RPM |
| Air Flow | 79.5 CFM (2.23m³/min) |
| Width | 25.00mm |
| Weight | 0.716 lb (324.77 g) |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Termination | 2 Terminals |
| Approval Agency | CE, CSA, UL, VDE |
| Ingress Protection | - |
| Fan Type | Tubeaxial |
| Noise | 42.0dB(A) |
| Static Pressure | - |
Request a Quote
Clients Also Buy
9901120NS

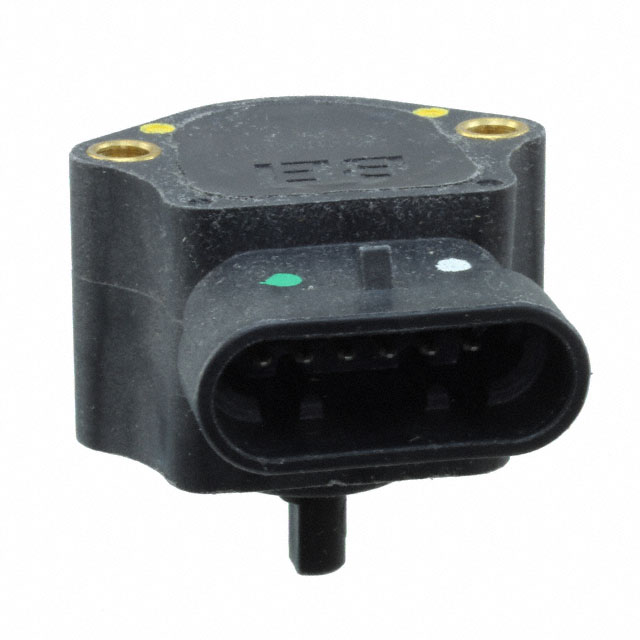

HALL EFFECT ROTARY SENSOR
