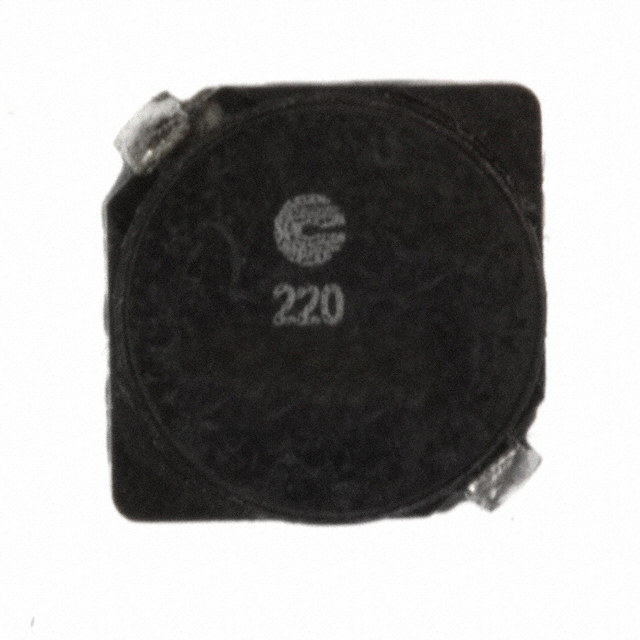

SD7030-220-R
FIXED IND 21UH 1.4A 128 MOHM SMDManufacturer: Eaton - Electronics Division
Categories: Fixed Inductors
Quality Control: Learn More
21 µH Shielded Drum Core, Wirewound Inductor 1.4 A 128mOhm Max Nonstandard
Additional Information
Series: SD7030RoHS Status: RoHS CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±30% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.276"" L x 0.276"" W (7.00mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 128mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 1.2A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.118"" (3.00mm) |
| Inductance | 21 µH |
| Current Rating (Amps) | 1.4 A |
Request a Quote
