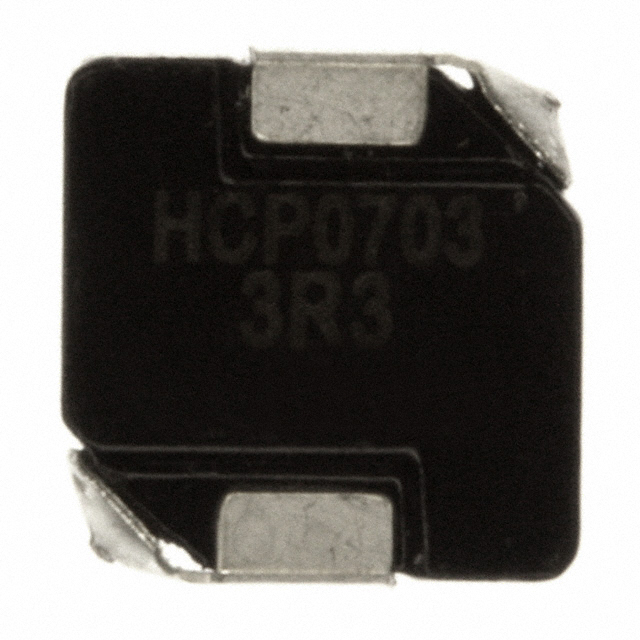

HCP0703-3R3-R
FIXED IND 3.3UH 6A 30 MOHM SMDManufacturer: Eaton - Electronics Division
Categories: Fixed Inductors
Quality Control: Learn More
3.3 µH Shielded Drum Core, Wirewound Inductor 6 A 30mOhm Max Nonstandard
Additional Information
Series: HCP0703RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.287"" L x 0.276"" W (7.30mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 13.5A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.118"" (3.00mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 6 A |
