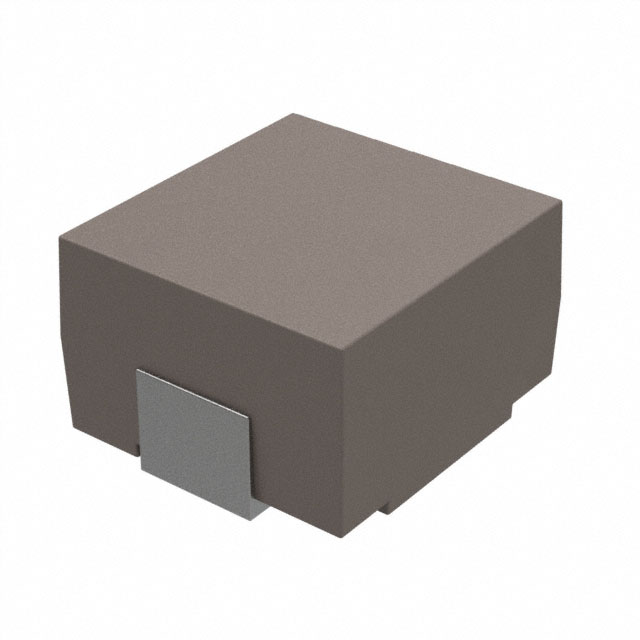

FP1308R1-R32-R
FIXED IND 320NH 57A 0.32MOHM SMDManufacturer: Eaton - Electronics Division
Categories: Fixed Inductors
Quality Control: Learn More
320 nH Unshielded Drum Core, Wirewound Inductor 57 A 0.32mOhm Nonstandard
Additional Information
Series: FLAT-PAC, FP1308RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.528"" L x 0.500"" W (13.40mm x 12.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 0.32mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 52A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.315"" (8.00mm) |
| Inductance | 320 nH |
| Current Rating (Amps) | 57 A |
