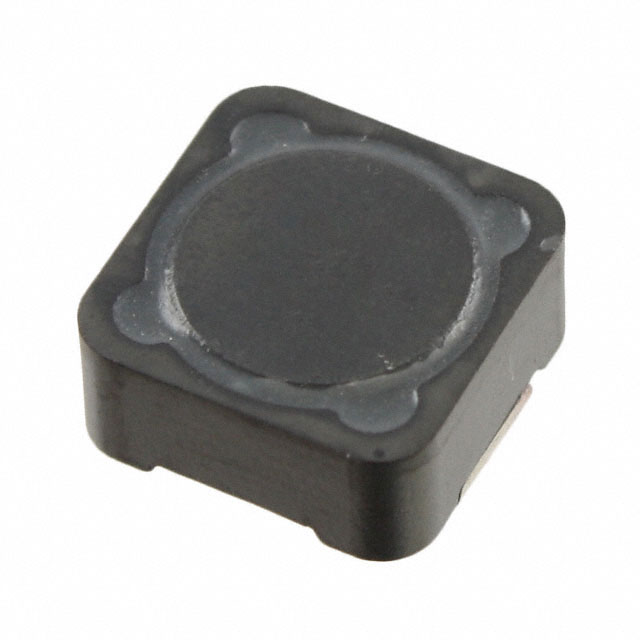

DR125-330-R
FIXED IND 33UH 3.28A 50.5MOHM SMManufacturer: Eaton - Electronics Division
Categories: Fixed Inductors
Quality Control: Learn More
33 µH Shielded Drum Core, Wirewound Inductor 3.28 A 50.5mOhm Nonstandard
Additional Information
Series: DRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.492"" L x 0.492"" W (12.50mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 50.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 3.84A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.236"" (6.00mm) |
| Inductance | 33 µH |
| Current Rating (Amps) | 3.28 A |
