CTX100-1-52M-R
FIXED IND 100UH 2.5A 106 MOHM THManufacturer: Eaton - Electronics Division
Categories: Fixed Inductors
Quality Control: Learn More

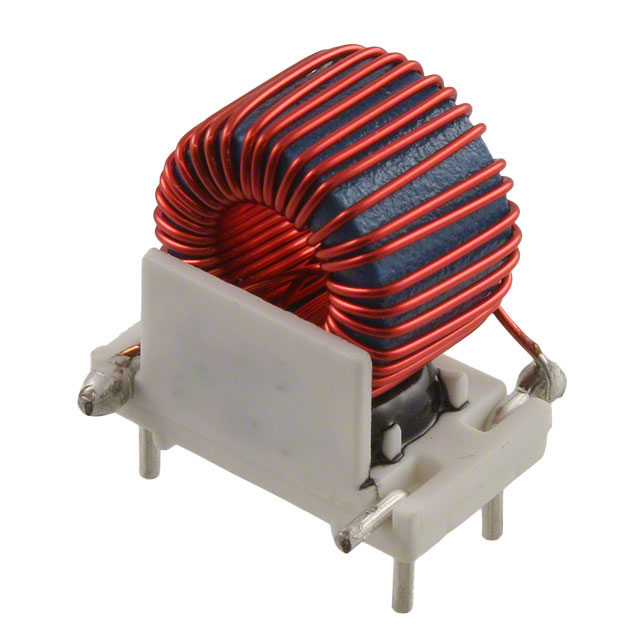

100 µH Unshielded Toroidal Inductor 2.5 A 106mOhm Max Radial, Vertical, 4 Leads (Open)
Additional Information
Series: CTXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Size / Dimension | 0.772"" L x 0.634"" W (19.60mm x 16.10mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 75°C |
| DC Resistance (DCR) | 106mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 2.4A |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.776"" (19.70mm) |
| Inductance | 100 µH |
| Current Rating (Amps) | 2.5 A |
