DIW050F065
IGBT, TO-247-3L, 650V, 50A, 300AManufacturer: Diotec Semiconductor
Categories: Single IGBTs
Quality Control: Learn More

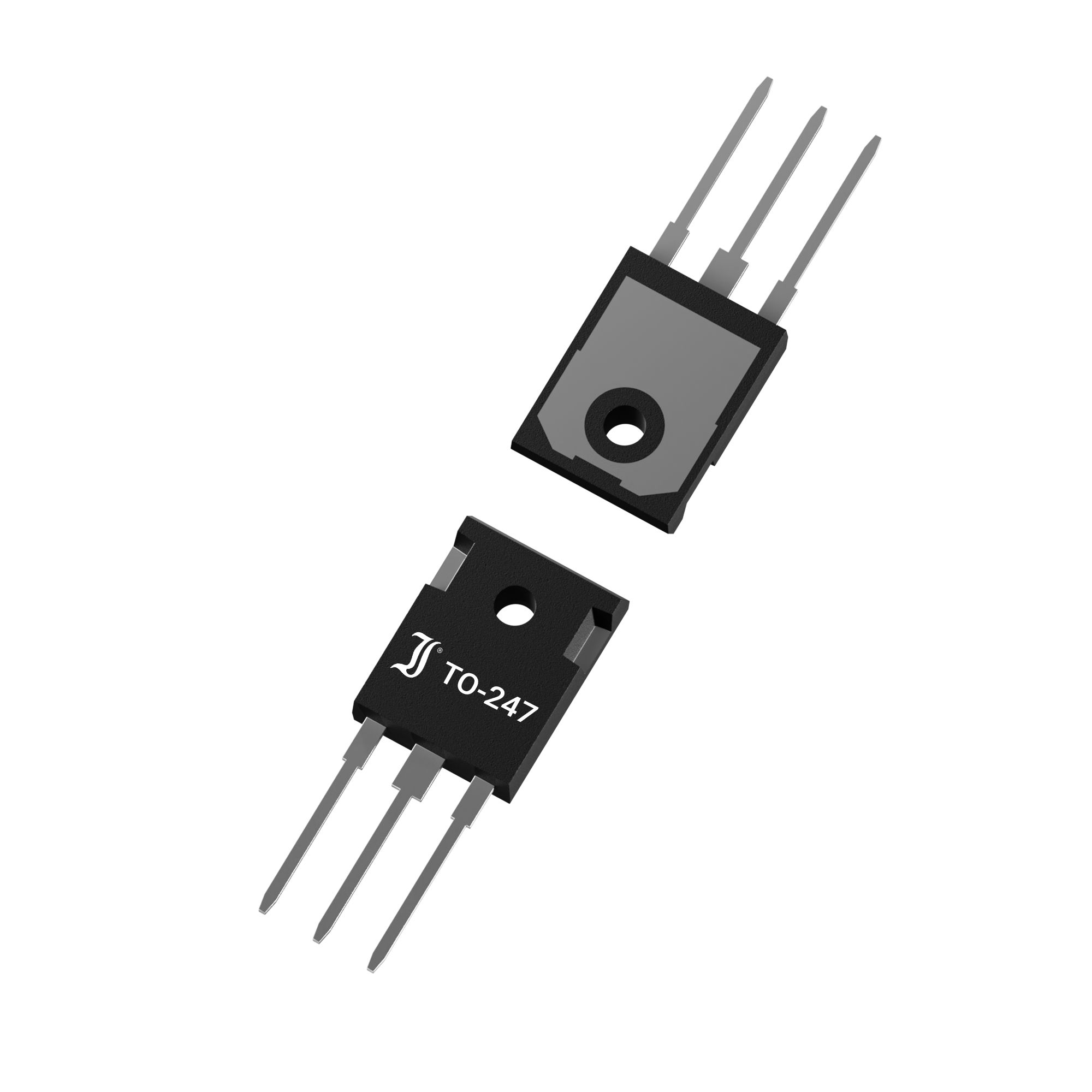

IGBT Trench Field Stop 650 V 100 A 350 W Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 38 ns |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 50A |
| Supplier Device Package | TO-247 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 36ns/125ns |
| Switching Energy | 3mJ (on), 1.1mJ (off) |
| Test Condition | 400V, 50A, 10Ohm, 15V |
| Gate Charge | 78 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 300 A |
| Power - Max | 350 W |
| Qualification | - |
