MMFTP84W
MOSFET SOT-323 P -50V -0.13A 10?Manufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

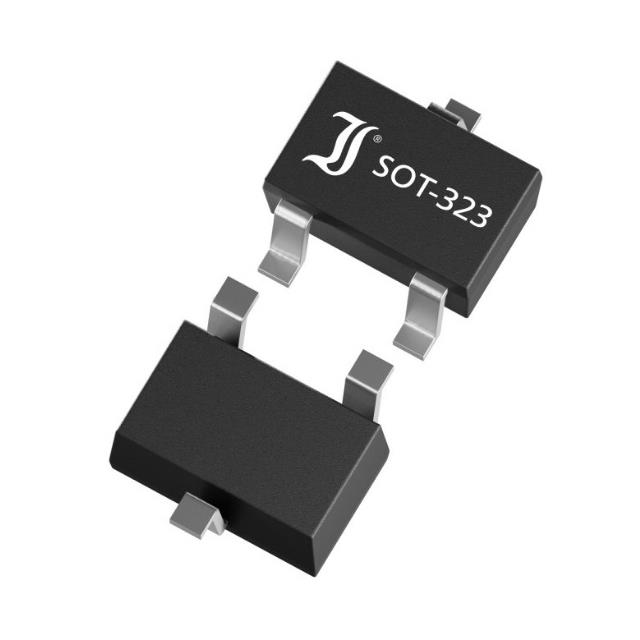

P-Channel 50 V 130mA 200mW Surface Mount SOT-323
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 130mA |
| Rds On (Max) @ Id, Vgs | 10Ohm @ 130mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Supplier Device Package | SOT-323 |
| Drive Voltage (Max Rds On, Min Rds On) | 45V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 50 V |
| Input Capacitance (Ciss) (Max) @ Vds | 45 pF @ 25 V |
