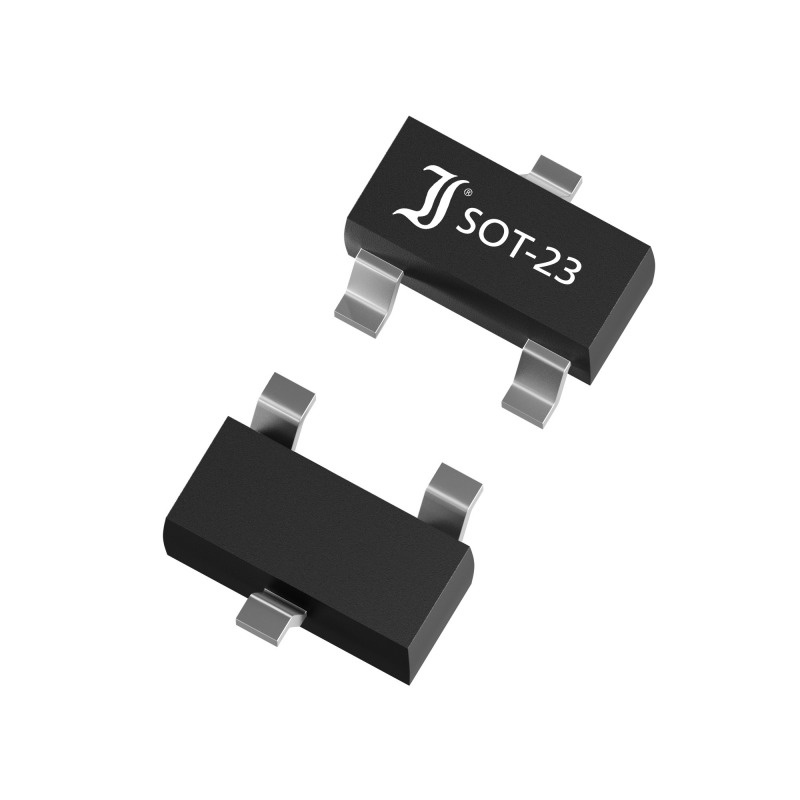

MMFTP5618-Q
MOSFET, SOT-23, P, -60V, -1.25AManufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 60 V 1.25A (Ta) 500mW (Ta) Surface Mount SOT-23-3 (TO-236)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.25A (Ta) |
| Rds On (Max) @ Id, Vgs | 170mOhm @ 1.25A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 361 pF @ 30 V |
