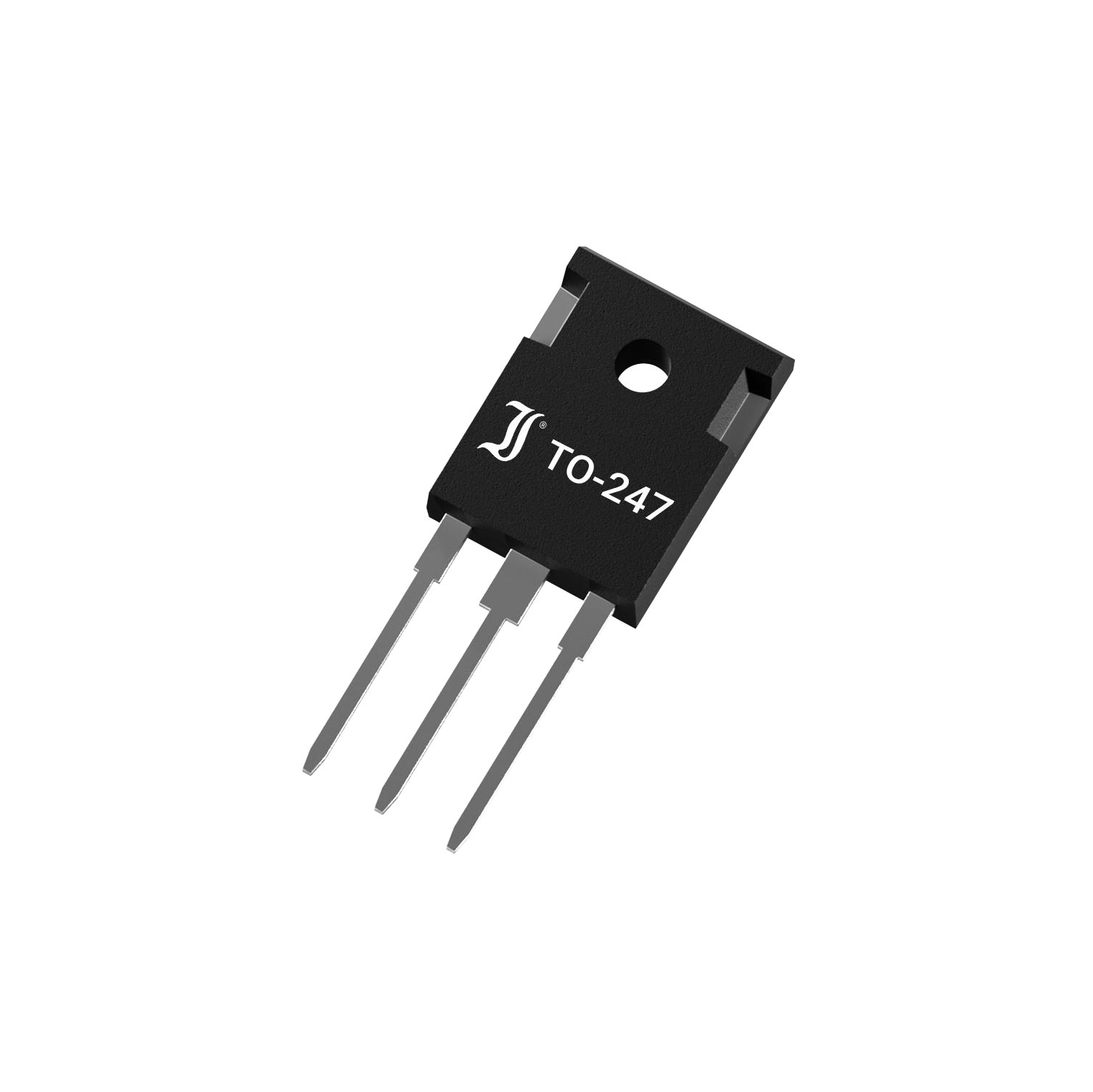

DIW120SIC023-AQ
MOSFET TO-247-3L N 130A 1200VManufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 125A (Tc) 600W (Tc) Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 125A (Tc) |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 75A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 600W (Tc) |
| Vgs(th) (Max) @ Id | 2.9V @ 250µA |
| Supplier Device Package | TO-247 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6150 pF @ 1000 V |
| Qualification | AEC-Q101 |
