DIT100N10
MOSFET TO220AB N 100V 0.0099OHMManufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

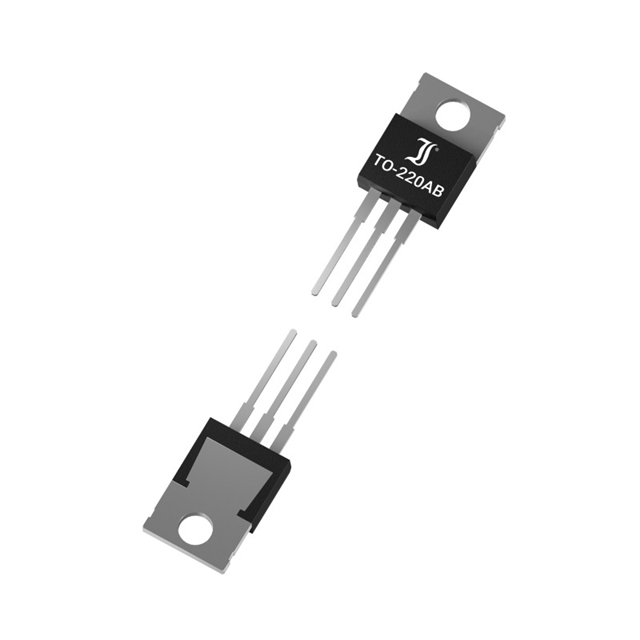

N-Channel 100 V 100A (Tc) 200W (Tc) Through Hole TO-220AB
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 40A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-220AB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 85 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4800 pF @ 50 V |
Request a Quote
