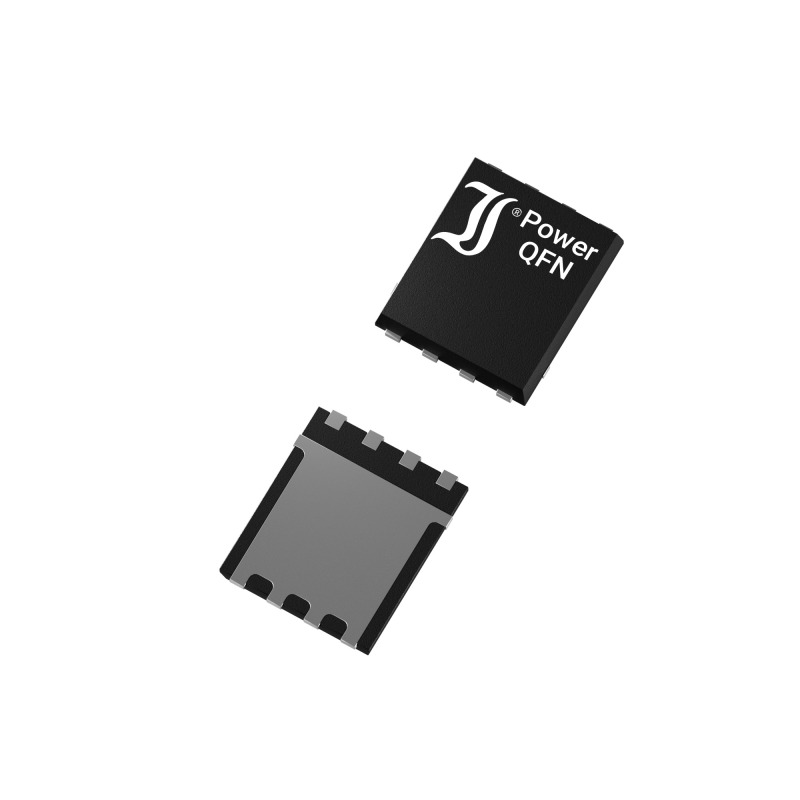

DI025N20PQ
MOSFET N , 200V 25A 48mWManufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 200 V 25A (Tc) 135W (Tc) Surface Mount 8-QFN (5x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 135W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-QFN (5x6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 200 V |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1650 pF @ 100 V |
| Qualification | AEC-Q101 |
