DI005P04PW-AQ
ICManufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

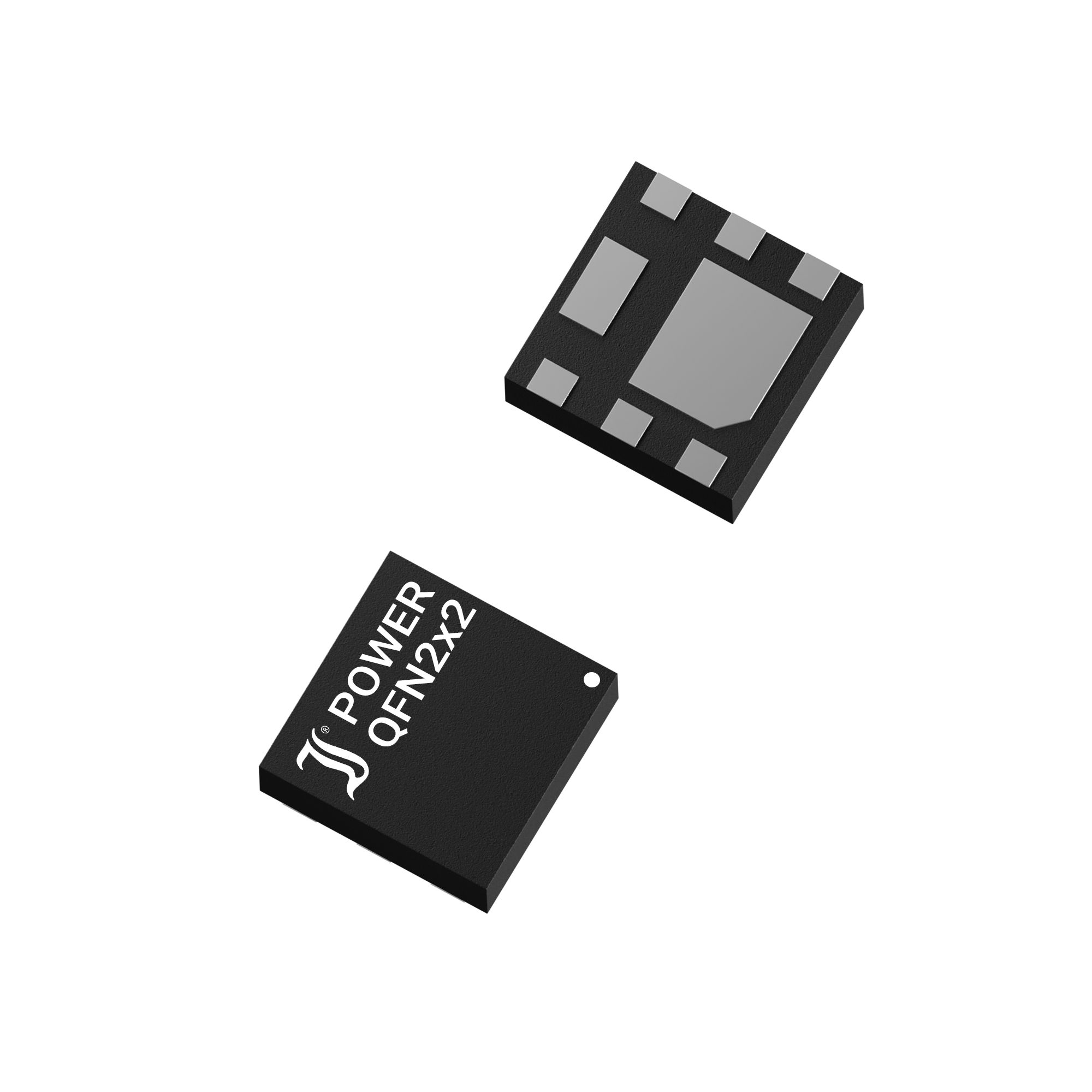

P-Channel 40 V 5.4A (Ta) 2W (Ta) Surface Mount 6-QFN (2x2)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-PowerUDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 6-QFN (2x2) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1078 pF @ 20 V |
| Qualification | AEC-Q101 |
