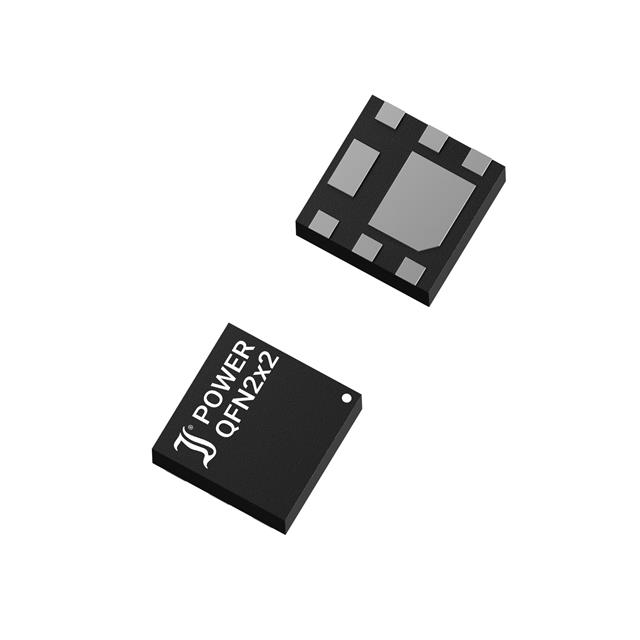

DI005N03PW-AQ
MOSFET POWERQFN 2X2 30V 0.02OHMManufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 5A (Ta) 700mW (Ta) Surface Mount 6-QFN (2x2)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | 6-QFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 11.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 448 pF @ 15 V |
