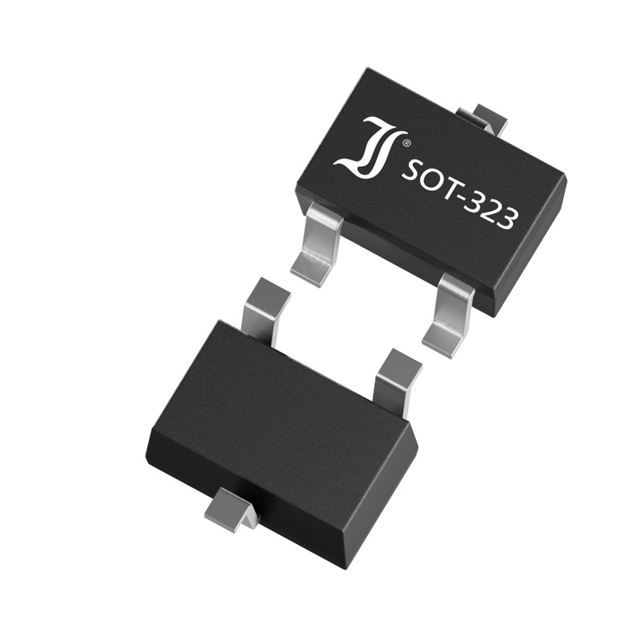

2N7002W
MOSFET SOT-323 N 60V 0.115A 13.5Manufacturer: Diotec Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 115mA (Ta) 200mW (Ta) Surface Mount SOT-323
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 115mA (Ta) |
| Rds On (Max) @ Id, Vgs | 13.5Ohm @ 500mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | SOT-323 |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V |
