SM4000
DIODE GEN PURP 4000V 1A MELFManufacturer: Diotec Semiconductor
Categories: Single Diodes
Quality Control: Learn More

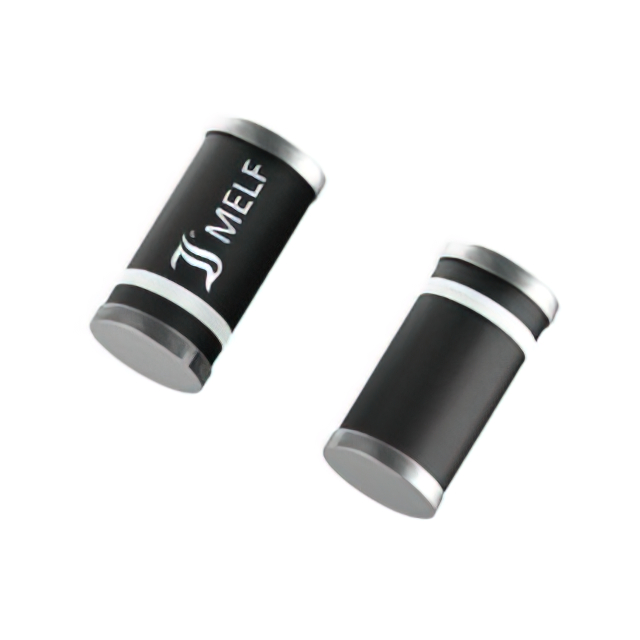

Diode 4000 V 1A Surface Mount DO-213AB (MELF)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-213AB (MELF) |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 4000 V |
| Voltage - Forward (Vf) (Max) @ If | 2.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 4000 V |
| Qualification | - |
