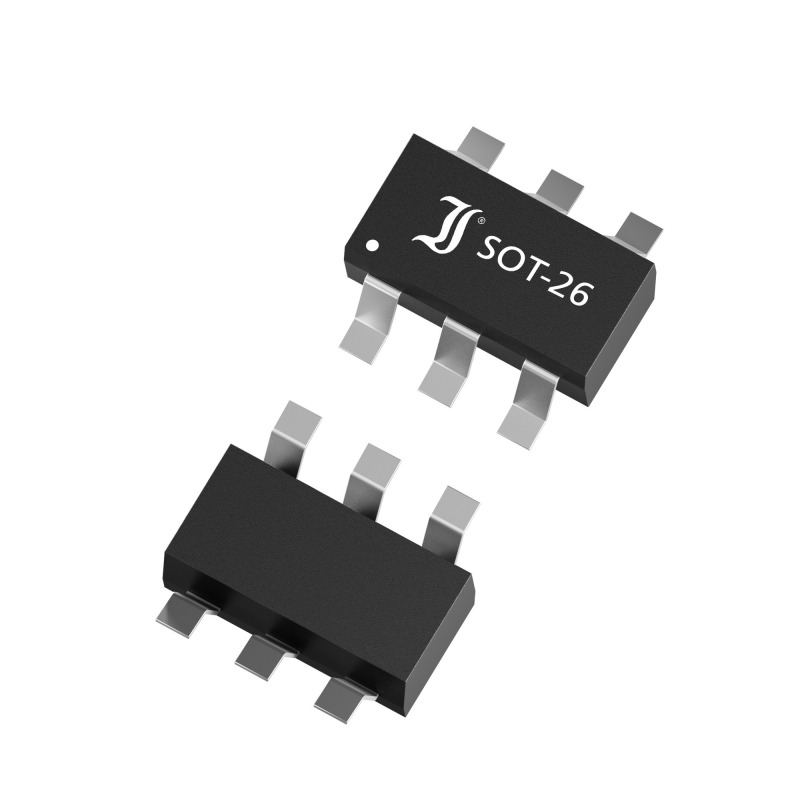

MMFTN620KD
ICManufacturer: Diotec Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 350mA 500mW Surface Mount SOT-26
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 500mW |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 350mA |
| Input Capacitance (Ciss) (Max) @ Vds | 35pF @ 25V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 500mA, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 1.3nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SOT-26 |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy

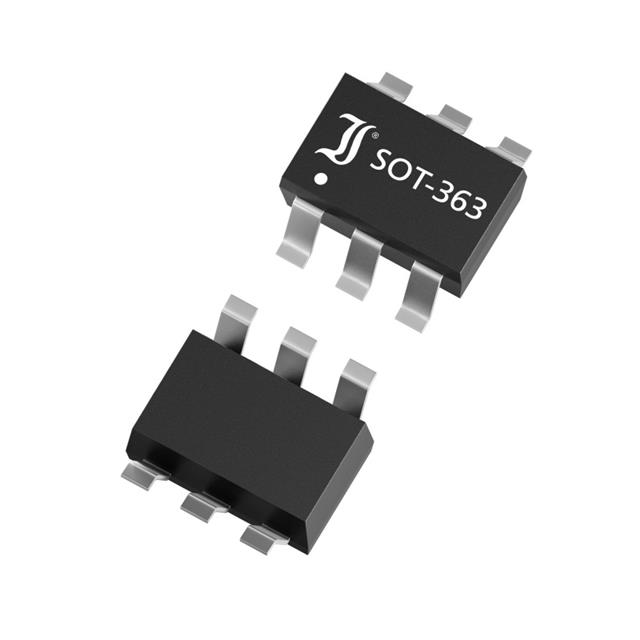

MMBT7002KDW-AQ
MOSFET SOT363 N+N 60V 3OHM 150C
DI005N06SQ2
IC

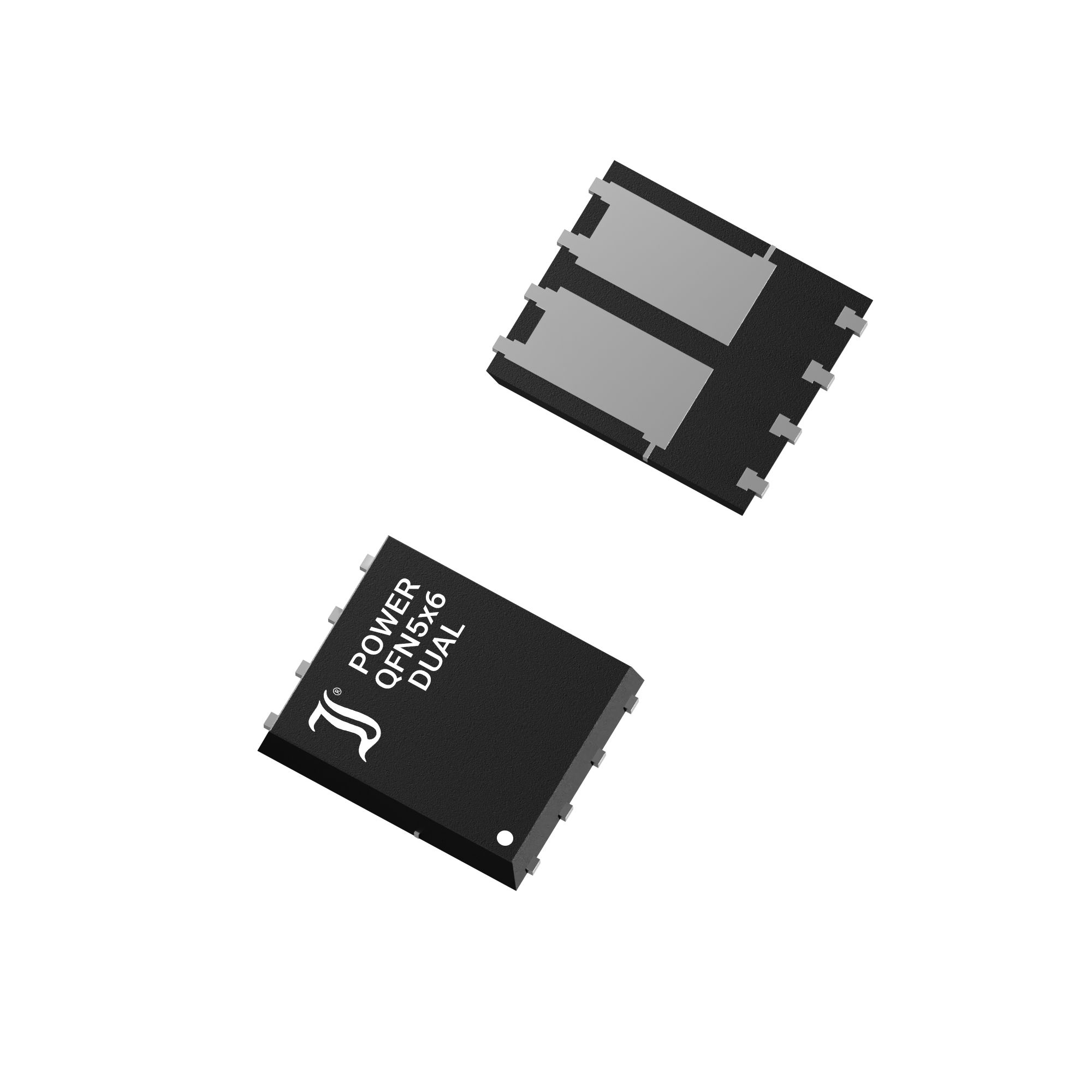

DI038N04PQ2-AQ
