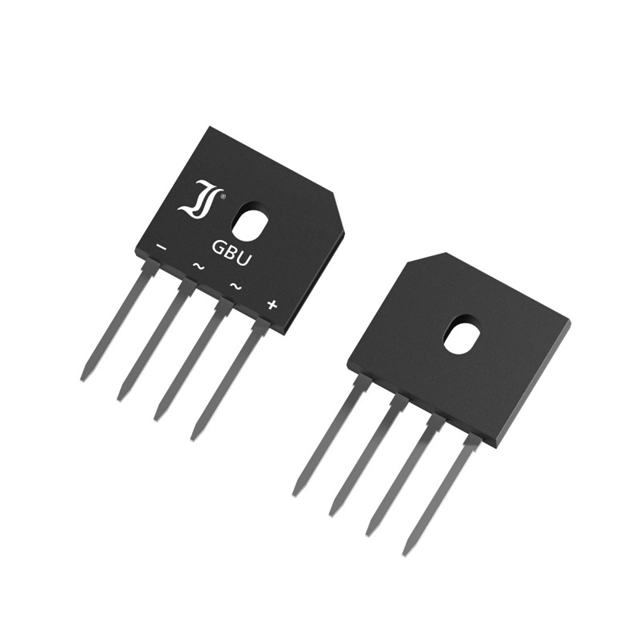

GBU12K
BRIDGE RECT 1PHASE 8.4A 800V GBUManufacturer: Diotec Semiconductor
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Standard 800 V Through Hole GBU
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 4-SIP, GBU |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | GBU |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 8.4 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 12 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
