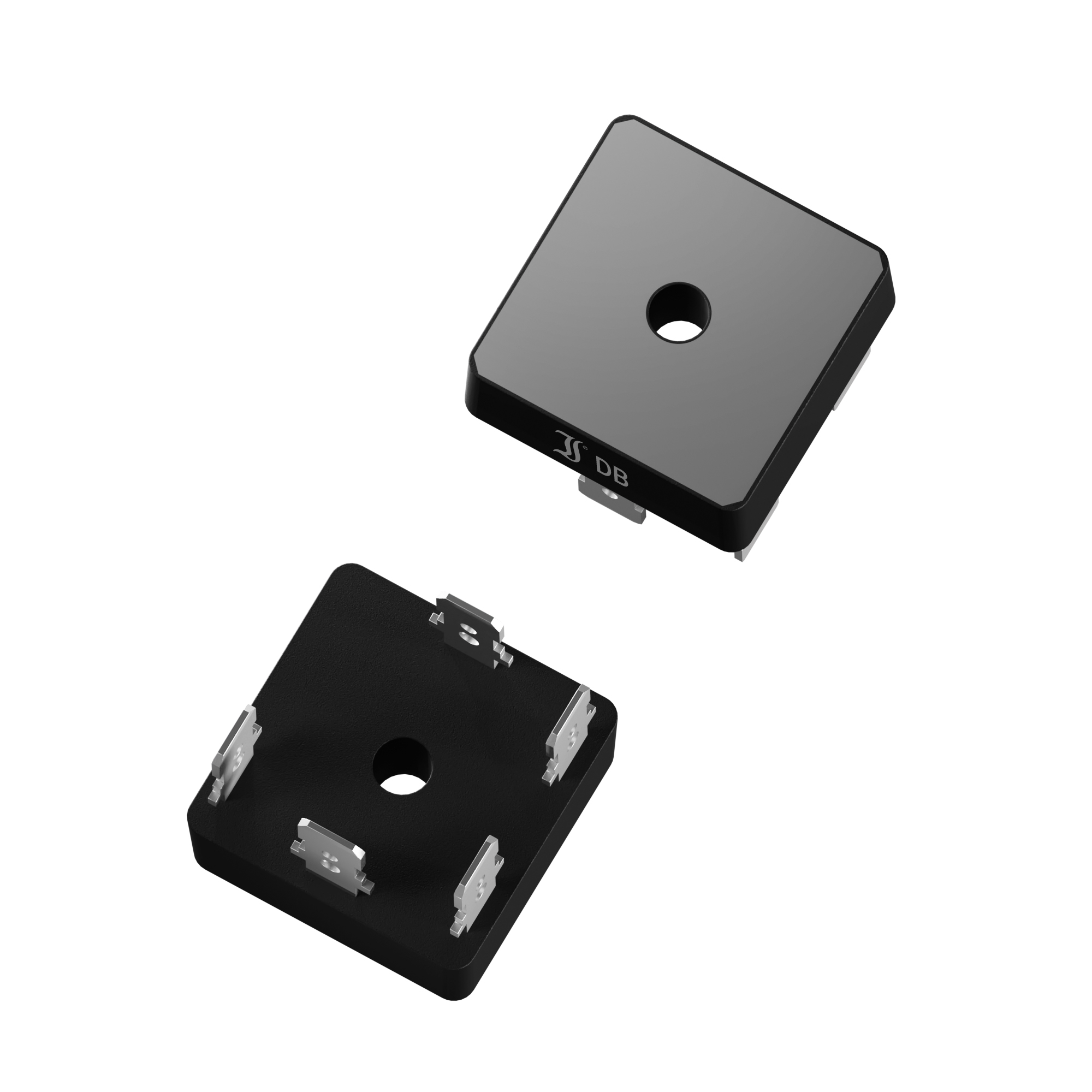

DB15-005

BRIDGE, 3-PH, DB, 50V, 25A

Manufacturer: Diotec Semiconductor

Categories: Bridge Rectifiers

Quality Control: Learn More

Diotec Semiconductor Three Phase Bridge Rectifier, part number DB15-005. This standard technology rectifier features a 50V peak reverse voltage and a 35A average rectified forward current (Io). The DB-35 package offers convenient chassis mounting. With a low reverse leakage current of 10 µA at 50V and a maximum forward voltage drop of 1.05V at 12.5A, this component is suitable for power supply and industrial automation applications. It operates across a wide temperature range from -50°C to 150°C (TJ).

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / Case5-Square, DB-35
Mounting TypeChassis Mount
Diode TypeThree Phase
Operating Temperature-50°C ~ 150°C (TJ)
TechnologyStandard
Supplier Device PackageDB
Grade-
Voltage - Peak Reverse (Max)50 V
Current - Average Rectified (Io)35 A
Voltage - Forward (Vf) (Max) @ If1.05 V @ 12.5 A
Current - Reverse Leakage @ Vr10 µA @ 50 V
Qualification-
