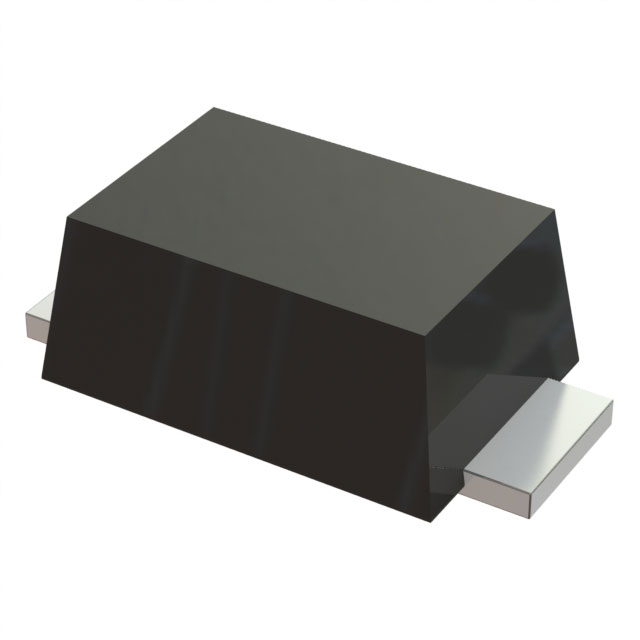

T3V3LCS3-7
TVS DIODE 3.3VWM 19VC SOD323Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated T3V3LCS3-7 is a unidirectional transient voltage suppressor (TVS) diode designed for robust overvoltage protection. This SOD-323 package component features a 3.3V reverse standoff voltage and a breakdown voltage of 4V minimum. It offers a 19V maximum clamping voltage at a peak pulse current of 20A (8/20µs), delivering 350W of peak pulse power. The T3V3LCS3-7 exhibits a low capacitance of 3pF at 1MHz, making it suitable for high-speed signal lines. Operating across a wide temperature range of -55°C to 150°C, this device is commonly employed in general-purpose protection for automotive and industrial applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 20A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Supplier Device Package | SOD-323 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 19V |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
