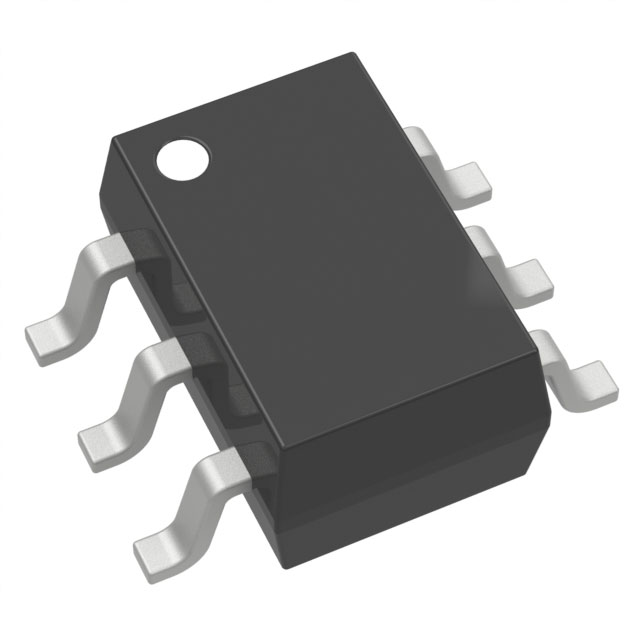

DRTR5V0U4TS-7
TVS DIODE 5.5VWM 10VC TSOT26Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated DRTR5V0U4TS-7 is a transient voltage suppressor (TVS) diode designed for robust protection. This AEC-Q101 qualified component offers 5.5V reverse standoff voltage and a 10V typical clamping voltage at 1A peak pulse current (8/20µs). Featuring 4 unidirectional steering channels, it provides rail-to-rail protection. The DRTR5V0U4TS-7 has a low capacitance of 1pF @ 1MHz, making it suitable for high-speed interfaces. Operating across a wide temperature range of -65°C to 150°C, this TVS diode is packaged in a compact TSOT-26 (SOT-23-6 Thin) for surface mounting. Its design is particularly suited for power line protection applications, including those found in HDMI interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | HDMI |
| Capacitance @ Frequency | 1pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | TSOT-26 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | Automotive |
| Qualification | AEC-Q101 |
