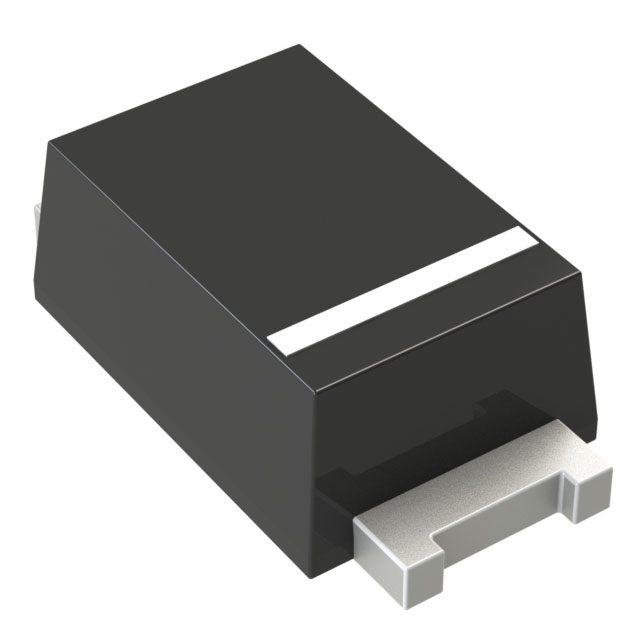

DPD13AWF-7
TVS DIODE 13VWM 21.5VC SOD123FManufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
Diodes Incorporated DPD13AWF-7 is a unidirectional TVS diode designed for transient voltage suppression. This component features a 13V reverse standoff voltage and a breakdown voltage of 14.4V (minimum). It offers a clamping voltage of 21.5V at a peak pulse current (Ipp) of 10.5A, providing a peak pulse power dissipation of 225W. The device is housed in a compact SOD-123F surface-mount package, supplied on tape and reel. The operating temperature range is -65°C to 150°C (TJ). This TVS diode is suitable for general-purpose applications requiring robust protection against voltage surges, commonly found in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123F |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 10.5A |
| Voltage - Reverse Standoff (Typ) | 13V |
| Supplier Device Package | SOD-123F |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 21.5V |
| Power - Peak Pulse | 225W |
| Power Line Protection | No |
