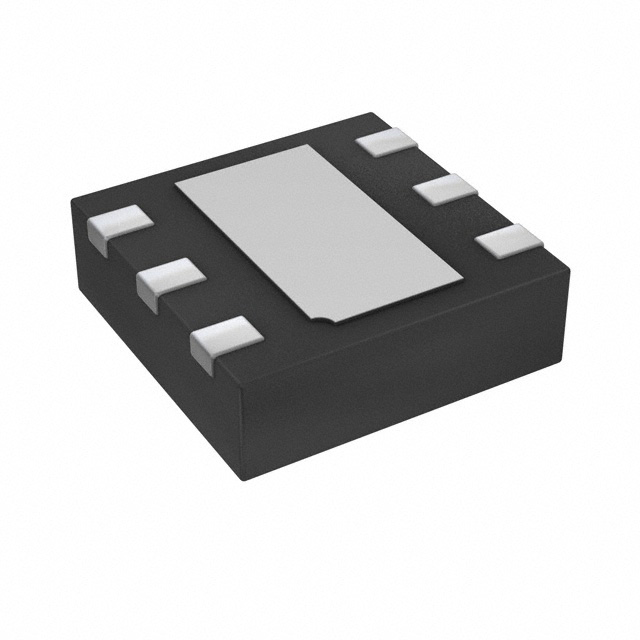

DMF05LCFLP-7
TVS DIODE 5VWM 12.5VC 6DFN1616Manufacturer: Diodes Incorporated
Categories: TVS Diodes
Quality Control: Learn More
The Diodes Incorporated DMF05LCFLP-7 is a transient voltage suppressor (TVS) diode designed for robust protection. This automotive-grade component features a 5V reverse standoff voltage and a 6V minimum breakdown voltage. It offers a 12.5V maximum clamping voltage at a peak pulse current (Ipp). The device is rated for 70W peak pulse power dissipation. Engineered for surface mount applications, it is housed in a compact DFN1616-6 package with an exposed pad. The operating temperature range is -55°C to 150°C (TJ). This TVS diode is suitable for demanding applications within the automotive sector.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V (Min) |
| Supplier Device Package | DFN1616-6 |
| Unidirectional Channels | 5 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12.5V |
| Power - Peak Pulse | 70W |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
